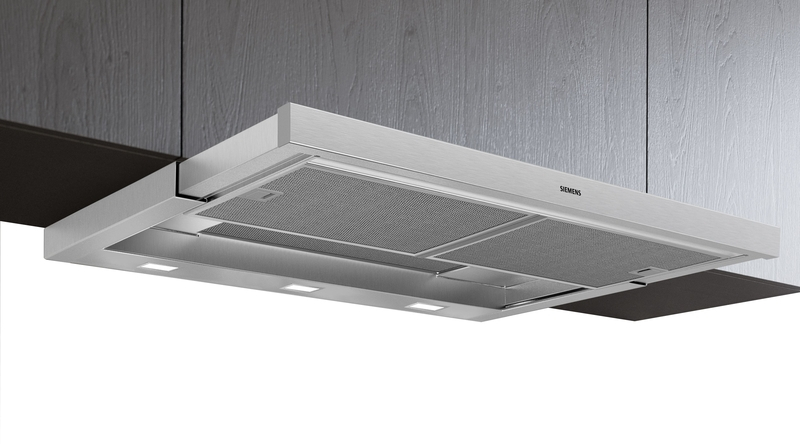

Siemens LI97RA561, iQ500, flat screen hood, 90 cm, stainless steel, EEK: B
INCLUDING 5 YEARS WARRANTY * (for the countries Germany, Denmark, Czech Republic, Poland, Austria, France, Luxembourg, Belgium, Netherlands and Switzerland)
The powerful flat screen hood for almost invisible placement in the upper cabinet.
- iQdrive motor: the quiet, powerful motor for efficient extraction of odors and vapors.
- LED lighting: Illuminates the hob optimally and saves energy
Design
- 90 cm flat screen hood, stainless steel
- Can be installed in a 60 or 90 cm wide wall cabinet
- Optional exhaust air or recirculation mode
- For recirculation mode, a standard recirculation set or a Clean Air Plus recirculation set (special accessory) is required
Comfort
- Electronic control (3 power levels + 2 intensive levels) with filter change display
- Electronic control with 6 buttons and display
- Intensive levels with automatic reset
- Automatic fan run-on
Equipment
- Even, bright lighting with 3 x 1.5 W LED module
- Dimming function
- softLight
- Color temperature: 3500 K
- Illuminance: 355 lux
- Cassette with stainless steel frame
- Metal grease filter, dishwasher safe
- Saturation display for grease and odor filters
Operating mode and performance
- Fan performance according to EN 61591 for exhaust air operation:
- Max. normal level: 395m³/h
- Intensive level: 700 m³/h
- Noise values according to EN 60704-2-13 for exhaust air operation:
- Max. normal level: 53dB(A) re 1 pW
- Intensive level: 69 dB(A) re 1 pW
- Noise min./max. Normal level: 41/53 dB
- When using the separately available Clean Air recirculation set (special accessory), your device achieves the following values in recirculation mode:
- Fan performance: Max. normal level: 358m³/h
- Intensive level: 628m³/h
- Noise values: Max. normal level: 60dB(A) re 1 pW
- Intensive level: 71 dB(A) re 1 pW
- 2 high-performance blowers: iQdrive motor - quiet and powerful motor
- iQdrive motor - quiet and powerful motor
Planning information
- Quick assembly fastening
- Device dimensions (HxWxD): 426 x 898 x 290 mm
- Installation dimensions (HxWxD): 385 x 524 x 290 mm
- Exhaust air connection Ø 150 mm (Ø 120 mm included)
- Length of connection cable: 1.75 m with plug
- Without handle bar (available as an optional accessory)
Environment and safety
- Energy efficiency class: B (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 38.8 kWh/year*
- Fan efficiency class: B*
- Lighting efficiency class: A*
- Grease filter efficiency class: B*
- Total connected load: 146 W
Technical data
- Design: flat screen hood
- Length of connection cable: 175.0 cm
- Min. niche dimensions for installation (H x W x D): 385mm x 524.0mm x 290mm mm
- Device height: 426 mm
- Minimum distance to the electric hob: 430 mm
- Minimum distance to the gas hob: 650 mm
- Net weight: 12.5 kg
- Control: electronic
- Number of performance levels: 3 levels + 2 intensive
- Fan performance at the highest normal level for exhaust air: 395 m³/h
- Fan performance at intensive circulating air level: 628 m³/h
- Fan performance at the highest normal level circulating air: 358 m³/h
- Fan performance at intensive exhaust level: 700 m³/h
- Max. air volume: 395 m³/h
- Number of lamps (pcs): 3
- Noise: 53 dB(A) re 1pW
- Diameter of the exhaust air connection: 120 / 150 mm
- Grease filter material: washable stainless steel
- EAN number: 4242003880258
- Connected load: 146 W
- Fuse: 10 A
- Voltage: 220-240V
- Frequency: 50; 60Hz
- Plug type: Schuko/Gardy with grounding
- Device type: Integrable
* According to EU regulation No. 65/2014
