Comfort

• rocker switch

• Fan performance 2 levels

Exhaust air performance

• According to EN 61591 and EN/IEC 60704-2-13, the device can achieve the following values ​​in exhaust air mode:
• Performance level 1: Fan performance 276 m3/h; Noise value 61 dB(A) re1pW
• Performance level 2: Fan performance 351 m3/h; Noise value 65 dB(A) re1pW
• Energy efficiency class: C (on an energy efficiency class scale from A+++ to D)
• Average energy consumption: 43.5 kWh/year*
• Fan efficiency class: D*
• Lighting efficiency class: A*
• Grease filter efficiency class: B*

Recirculation air performance

• A standard recirculation set (special accessory) is required for recirculation mode
• According to EN 61591 and EN/IEC 60704-2-13, the device achieves the following values in recirculation mode with the Clean Air standard recirculation set (available as special accessories):
• Performance level 1: Fan performance: 190 m3/h; Noise value: 66 dB(A) re1pW
• Performance level 2: Fan performance: 220 m3/h; Noise value: 69 dB(A) re1pW)

Technical data and sustainability:

• Total connected load: 93 W
• Voltage: 220 - 240 V
• Made in Germany: manufactured in a CO2-neutral production facility

Technical data:

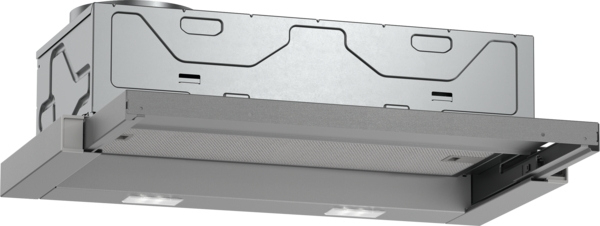

• Design: Flat screen hood
• Length of connection cable: 175 cm
• Niche dimensions for installation mm (HxWxD): 162mm x 526.0mm x 290mm mm
• Device height: 203 mm
• Minimum distance to the electric hob: 430 mm
• Minimum distance to the gas hob: 650 mm
• Net weight: 7.7 kg
• Control: Mechanical
• Number of power levels: 2
• Max m³/h
• Max. air volume: 351 m³/h
• Number of lamps (pcs): 2
• Noise level: 65 dB(A) re 1pW
• Diameter of the exhaust air nozzle: 150 mm
• Material of the grease filter: aluminum washable
• EAN number: 4242004289739
• Connection value: 93 W
• Fuse: 10 A
• Voltage: 220-240 V
• Frequency: 50 Hz
• Plug type: Schuko/Gardy with earthing
• Type of installation: Built-in
