For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

• Handle strips: Choose the right color from various Bosch handle strips.

• Metal grease filter: ensures an always fresh room climate to feel good before, during and after cooking.

Design

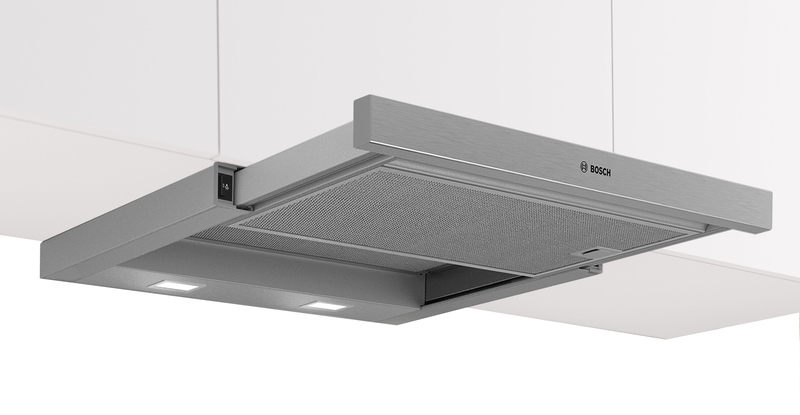

• 60 cm flat screen hood, gray metallic
• For installation in a 60 cm wide special wall cabinet
• Choice of exhaust air or recirculation mode

• A standard recirculation set (special accessory) is required for recirculation mode

Equipment

• Uniform, bright lighting with 2 x 1.5 W LED module

• Color temperature: 3500 K

• Illuminance: 131 lux

• Cassette with aluminum frame

• Metal grease filter, dishwasher safe

Operating mode and performance

• Exhaust air capacity according to EN 61591: max. 389 m³/h

• Recirculation air output:

  max. normal operation: 257 m³/h
• Noise values ​​according to EN 60704-2-13 max. normal level exhaust air operation: noise, highest normal level: 67 dB dB(A) re 1 pW

• Noise value in recirculation mode:

• max. normal level: 69 dB(A) re 1 pW

• Noise min./max. Normal level: 59/67 dB

• 1 high-performance blower: capacitor motor
• Net weight: 7.9 kg

Planning and installation information

• Device dimensions (HxWxD): 203 x 598 x 290 mm
• Installation dimensions (HxWxD): 162 x 526 x 290 mm
• Exhaust air socket Ø 150 mm (Ø 120 mm included)
• Length of connection cable: 1.75 m with plug
• Handle strip available as an optional accessory
• Supplied with backflow flap

Environment and safety

• Energy efficiency class: B (on an energy efficiency class scale from A+++ to D)
• Average energy consumption: 40.3 kWh/year*
• Fan efficiency class: C*
• Lighting efficiency class: A*
• Grease filter efficiency class: B*
• Total connected load: 108 W

  * According to EU regulation No. 65/2014

Technical information

• Type: flat screen hood

• Length of connection cable: 175.0 cm

• Min. niche dimensions for installation (H x W x D): 162mm x 526.0mm x 290mm

• Minimum distance to the electric hob: 430 mm

• Minimum distance to the gas hob: 650 mm

• Net weight: 8.8 kg

• Control: mechanical

• Number of power levels: 3

• Fan performance at the highest normal level, exhaust air: 388 m³/h

• Fan performance at the highest normal level circulating air: 257 m³/h

• Max. air volume: 388 m³/h

• Number of lamps (pcs): 2

• Sound power: 67 dB(A) re 1pW

• Diameter of the exhaust air connection: 120 / 150 mm

• Grease filter material: washable aluminum

• EAN number: 4242005231997

• Connection value: 108 W

• Fuse: 10 A

• Voltage: 220-240V

• Frequency: 50 Hz

• Plug type: Schuko/Gardy with grounding

• Device type: Built-in
