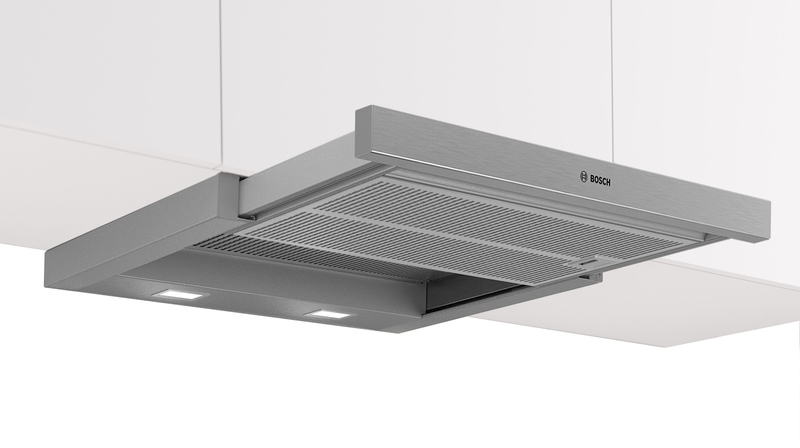

Bosch DFR067A52, flat screen hood, series 4, silver, 60cm, EKK: A, with 5 year guarantee!
Flat screen hoods: barely visible when integrated into a wall cabinet, they ensure a clear kitchen design
- Handle strips: Choose the right color from various Bosch handle strips.
- Metal grease filter: ensures an always fresh room climate to feel good before, during and after cooking.
- Eco Silence Drive™: the powerful and energy-saving motor for extractor hoods.
- High fan performance: excellent exhaust air performance of the extractor hood
Design
- 60 cm flat screen hood, gray metallic
- For installation in a 60 cm wide special wall cabinet
- Optional Exhaust air or recirculation mode
Comfort
- Short-stroke buttons (3 power levels and 1 intensive level) with LED display
- Electronic control side
- Intensive levels with automatic reset
- Fan run-on 10 minutes
Equipment
- Uniform, bright lighting with 2 x 1.5 W LED module
- Color temperature: 3500 K
- Illuminance: 296lux
- Filter cover made of stainless steel, perforated and dishwasher-safe
- Metal grease filter, dishwasher-safe
- A standard recirculation set or a Clean Air Plus recirculation set (special accessory) is required for recirculation mode
Operating mode and performance
- Fan performance according to EN 61591 in exhaust mode:
- Max. normal level: 399m³/h
- Intensive level: 728 m³/h
- Noise min./max. Normal level: 41/53 dB
- Noise values according to EN 60704-2-13 for exhaust air operation:
- Max. normal level: 53dB(A) re 1 pW
- Intensive level: 68 dB(A) re 1 pW
- When using the separately available Clean Air recirculation set (special accessory), your device achieves the following values in recirculation mode:
- Fan power: Max. normal level: 358m³/h
- Intensive level: 628m³/h
- Noise values: Max. normal level: 60dB(A) re 1 pW
- Intensive level: 71 dB(A) re 1 pW
- 2 high-performance blowers: Eco Silence Drive - the powerful and energy-saving motor
- Eco Silence Drive - the powerful and energy-saving motor
Planning and installation information
- Quick assembly fastening
- Device dimensions (HxWxD): 426 x 598 x 290 mm
- Installation dimensions (HxWxD): 385 x 524 x 290 mm
- Exhaust air connection Ø 150 mm (Ø 120 mm included)
- Supplied with backflow flap
- Length of connection cable: 1.75 m with plug
- Handle strip available as an optional accessory
Environment and safety
- Energy efficiency class: A (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 37.9 kWh/year*
- Fan efficiency class: B*
- Lighting efficiency class: A*
- Grease filter efficiency class: B*
- Total connected load: 144 W* According to EU regulation No. 65/2014
Technical information
- Type: flat screen hood
- Length of connection cable: 175.0 cm
- Min. niche dimensions for installation (H x W x D): 385mm x 524.0mm x 290mm
- Minimum distance to the electric hob: 430 mm
- Minimum distance to the gas hob: 650 mm
- Net weight: 10.1 kg
- Control: electronic
- Number of power levels: 3 fan levels and 1 intensive level
- Fan performance at the highest normal level, exhaust air: 399 m³/h
- Fan performance at the highest normal level circulating air: 358 m³/h
- Max. air volume: 399 m³/h
- Number of lamps (pcs): 2
- Sound power: 53 dB(A) re 1pW
- Diameter of the exhaust air connection: 120 / 150 mm
- Grease filter material: washable stainless steel
- EAN number: 4242005232017
- Connection value: 144 W
- Fuse: 10 A
- Voltage: 220-240V
- Frequency: 50;60 Hz
- Plug type: Schuko/Gardy with grounding
- Device type: Built-in
- Run-on function with automatic switch-off: 10 min
