For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

• LED lighting: Economical and long-lasting - the entire hob in view (with light efficiency class A).
• 3-stage fan performance: Always fresh air – adjustable in 3 stages with short-stroke buttons.
• Long-lasting metal grease filter: Quick and easy cleaning possible, dishwasher safe.
• Made in Germany: Quality made in Germany.

Design

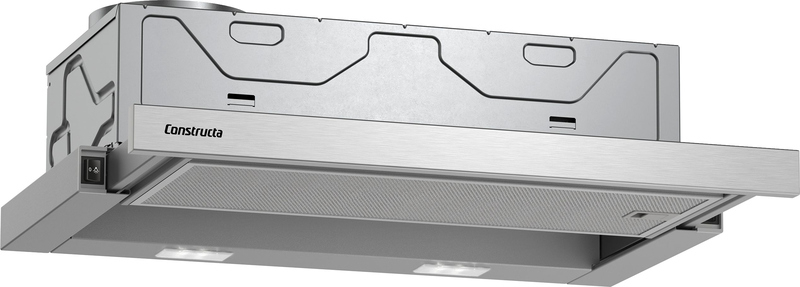

• 60 cm flat screen hood, metallic silver

• For installation in a 60 cm wide special wall cabinet.
• For exhaust air or recirculation air operation

• A standard recirculation set (special accessory) is required for recirculation mode

Comfort

• rocker switch

• Fan power 3 levels

Most important features

• Capacitor motor
• Uniform, bright lighting with 2 x 1.5 W LED module

• Color temperature: 3500 K

• Illuminance: 131 lux

• Durable metal grease filter, dishwasher-safe

Exhaust air performance

• According to EN 61591 and EN/IEC 60704-2-13, the device can achieve the following values ​​in exhaust air mode:
  • Performance level 1: Fan performance 276 m3/h; Noise value 61 dB(A) re1pW
  • Performance level 2: Fan performance 336 m3/h; Noise value 65 dB(A) re1pW

  • Performance level 3: Fan performance 394 m3/h; Noise value 68 dB (A) re1pW
• Energy efficiency class: C (on an energy efficiency class scale from A+++ to D)
• Average energy consumption: 57.3 kWh/year*
• Fan efficiency class: D*
• Lighting efficiency class: A*
• Grease filter efficiency class: B*

Recirculation air performance

• A standard recirculation set (special accessory) is required for recirculation operation
• According to EN 61591 and EN/IEC 60704-2-13, the device achieves the following values ​​in recirculation mode with the Clean Air Standard recirculation set (available
  as a special accessory):

  • Performance level 1: Fan performance: 190 m3/h; Noise value: 66 dB(A) re1pW

  • Performance level 2: Fan performance: 220 m3/h; Noise value: 69 dB(A) re1pW)

  • Performance level 3: Fan performance: 238 m3/h; Noise value: 71 dB (A) re1pW)

Planning and installation information

• Device dimensions (HxWxD): 203 x 598 x 290 mm

• Installation dimensions (HxWxD): 162 x 526 x 290 mm

• Exhaust air socket Ø 150 mm
• Length of connection cable: 1.75 m with plug

Technical data and sustainability:

• Information on consumption:

  • Total connected load: 108 W

• Voltage: 220 - 240 V

• Sustainability:

  • Made in Germany: manufactured in a CO2-neutral production facility

Technical data:

• Design: flat screen hood
• Length of connection cable: 175.0 cm
• Min. niche dimensions for installation (H x W x D): 162mm x 526.0mm x 290mm
• Minimum distance to the electric hob: 430 mm
• Minimum distance to the gas hob: 650 mm
• Net weight: 8.7 kg
• Control: mechanical
• Number of power levels: 3
• Max. fan output-exhaust air mode: 394 m³/h
• Max. fan output-recirculation mode: 238 m³/h
• Max. air volume: 394 m³/h
• Number of lamps (pcs): 2
• Noise level: 68 dB(A) re 1pW
• Diameter of the exhaust air nozzle: 150 mm
• Material of the Grease filter: washable aluminum
• EAN number: 4242004289814
• connected load: 108 W
• fuse: 10 A
• voltage: 220-240 V
• frequency: 50; 60 Hz
• Plug type: Schuko/Gardy with earthing
• Installation type: Built-in
