For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

Special features:

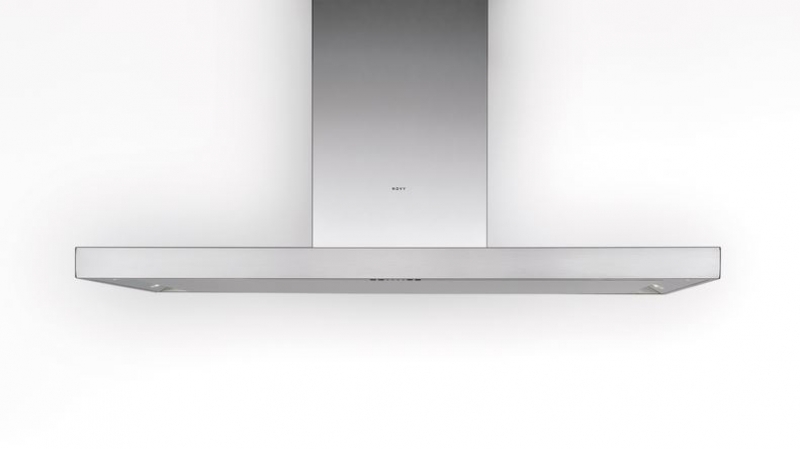

• Island hood in extra-flat design with 6 cm housing height
• High-quality brushed stainless steel
• Radio remote control on request
• Motor blow-out direction: top/back
• Advanced functions
• Edge suction

  The rising vapor is sucked off the outer edges of the hood body construction and directed to the grease filter behind it. Due to the high flow speed at the edge of the extractor hood, almost no cooking fumes can escape into the kitchen, even with lower motor settings. There are no turbulences, the drag effect is high and rebound effects play no role. The air does not flow into the kitchen, but directly into the extractor hood. The increase in efficiency resulting from the edge extraction enables operation at lower power levels, with less energy consumption and lower noise.

  with high flow speed
• run-on time can be switched on in all fan levels
• recirculation possible with recirculation set, device then at least 68 cm high
• connection to smaller exhaust air systems not possible
• metal grease filter covered lying, dishwasher-safe
• Combination with optional plug-in window switch possible (item no. 34.118)
• Pipe extension possible for exhaust air up to a room height of approx. 315 cm
• Follow-up time can be switched on
• Grease filter saturation display

Features:

• Motor: integrated/at a distance (inside)
• Sound-insulated high-performance fan
• Powerful ebm-papst motor
• High-quality brushed stainless steel
• Lighting 4 x 2 W LED (dimmable) warm white 2,700K (optional: kit LED neutral white 4,000K)
• Electronic circuit 4 levels
• Exhaust air connection: 150 mm round

• Grease filter saturation display
• Follow-up time can be switched on in all fan levels

• Concealed metal grease filter, dishwasher safe

Technical information

• Type: island hood
• Motor: integrated

• Recirculated air: optional

• Sound insulation: integrated

• Dimensions (WxD): 120 x 70 cm

• Width: 120cm

• Height (min. - max.) with exhaust air: 56.3 x 73 cm
• Height (min.-max.) with recirculated air: 67.9 x 86 cm
• Shaft extension, max. height: 135 cm
• Shaft dimensions (WxD): 34.7 x 31.8 cm
• Free-blowing performance: 1080 m³/u
• Performance :

  • Performance / pressure 1st stage: 348 m³/h

  • Performance / pressure 2nd stage: 432 m³/h

  • Performance / pressure 3rd stage: 611 m³/h

  • Performance / Pressure Intensive: 920 m³/h / 428 Pa

• Sound:

  • Noise Sound pressure (sound power) 1st stage: 47 dB(A) / 32 dB(A) re 1 pW

  • Noise Sound pressure (sound power) 2nd level: 51 dB(A) / 36 dB(A) re 1 pW

  • Noise Sound pressure (sound power) 3rd level: 57 dB(A) / 41 dB(A) re 1 pW

  • Noise Sound pressure (sound power) Intensive: 65 dB(A) / 51 dB(A) re 1 pW

• Speed ​​levels: 3 + Intensive

• Circuit: Electronic circuit

• Circuit: Buttons

• Number of metal grease filters: 1 piece, dishwasher safe

• Free-blowing performance: 1080 m³/u
• Max. connected load with external motor: 293 W
• Lighting: 4 x 2 watts

• Weight of extractor hood / external motor (kg) 42

  . The manufacturer offers a 5-year guarantee throughout Germany on the delivered item Novy Flat'line 7660 island hood, stainless steel island hood. If material or manufacturing defects occur during this period, the manufacturer will provide one of the following services at its discretion under the guarantee:
