For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

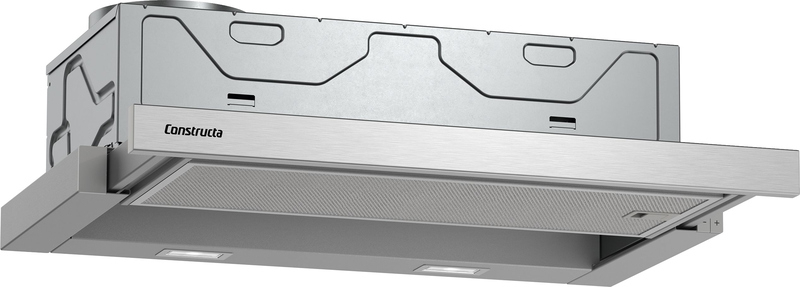

Constructa CD30677, flat screen hood, silver metallic, 60 cm, EEK: A, with 5 year guarantee!
The Constructa flat screen hood with 4-stage fan performance, efficient BLDC motor and LED lighting is economical in energy efficiency class A.
- LED lighting: Economical and long-lasting - the entire hob in view (with light efficiency class A).
- 4-level fan performance: Always fresh air – adjustable in 4 levels with short-stroke buttons.
- BLDC motor: Efficient, quiet and long-lasting motor - economical to operate thanks to BLDC technology.
- Long-lasting metal grease filter: Quick and easy cleaning possible, dishwasher safe.
- Made in Germany: Quality made in Germany.
Design
- 60 cm flat screen hood, metallic silver
- For installation in 60 cm wide wall cabinet
- For exhaust air or recirculation air operation
- A standard recirculation set (special accessory) is required for recirculation mode
Comfort
- High, finely adjustable fan output thanks to electronic control via short-stroke buttons with LED display
- Electronic control side
- 3 performance levels and 1 intensive level
- Intensive levels with automatic reset
- Automatic fan run-on
Equipment
- Uniform, bright lighting with 2 x 1.5 W LED module
- Color temperature: 3500 K
- Illuminance: 294 lux
- Cassette with aluminum frame
- Long-lasting metal grease filter, dishwasher-safe
Operating mode and performance
- Exhaust air capacity according to EN 61591: max. 400 m³/h
- Exhaust air output according to EN 61591: max. normal operation268m³/h
- Intensive level 400 m³/h
- Fan performance according to EN 61591 in exhaust air mode: Max. normal level: 268m³/h
- Intensive level: 400 m³/h
- Noise values according to EN 60704-2-13 for exhaust air operation: Max. normal level: 62dB(A) re 1 pW
- Intensive level:69 dB(A) re 1 pW
- Noise values according to EN 60704-2-13 max. normal level exhaust air mode: noise, highest normal level: 62 dB dB(A) re 1 pW
- Noise min./max. Normal level: 49/62 dB
- 1 high-performance blower: energy-saving operation thanks to efficient BLDC technology
Planning and installation information
- Device dimensions (HxWxD): 203 x 598 x 290 mm
- Installation dimensions (HxWxD): 162 x 526 x 290 mm
- Exhaust air connection Ø 150 mm (Ø 120 mm included)
- Length of connection cable: 1.75 m with plug
Environment and safety
- Energy efficiency class: A (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 21 kWh/year*
- Fan efficiency class: B*
- Lighting efficiency class: A*
- Grease filter efficiency class: C*
- Total connected load: 74 W
* According to EU regulation No. 65/2014
Technical data:
- Type: flat screen hood
- Length of connection cable: 175.0 cm
- Min. niche dimensions for installation (H x W x D): 162mm x 526.0mm x 290mm
- Device height: 203 mm
- Minimum distance to the cooking area Electric: 430 mm
- Minimum distance to the gas hob: 650 mm
- Net weight: 8.1 kg
- Control: electronic
- Number of power levels: 3 fan levels and 1 intensive level
- Max. fan power exhaust mode: 268 m³/h
- Fan performance in intensive level recirculation mode: 353 m³/h
- Max m³/h
- Number of lamps (pcs): 2
- Noise level: 62 dB(A) re 1pW
- Diameter of the exhaust air nozzle: 120 / 150 mm
- Material of the grease filter: washable aluminum
- EAN number: 4242004251392
- Connected load: 74 W
- Fuse: 10 A
- Voltage: 220-240 V
- Frequency: 50; 60 Hz
- Plug type: Schuko/Gardy with earthing
- Type of installation: Built-in
