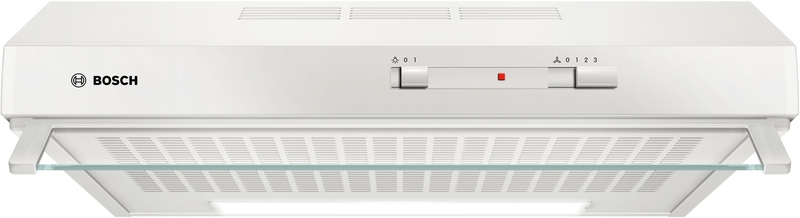

Bosch DUL62FA21, Series 2, under-unit hood, 60 cm, white, EKK: D, with 5-year guarantee!
The under-unit hood: place the hood under your upper cabinet or the wall to save space.
Operating mode and performance
- Noise values according to EN 60704-3 and EN 60704-2-13 max. normal level exhaust air mode: 68 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure
- Exhaust air performance according to EN 61591:
- max.250 m³/h
. - Energy efficiency class: D (on an energy efficiency class scale from A+++ to D)
. D*
- Beleuchtungs-Effizienzklasse: E*
- Geräusch min./max. Normalstufe: 53/68 dB
- Arbeitsplatzbeleuchtung mit 1 x LED 4W E14
- Beleuchtungsstärke: 45 lux
- Farbtemperatur: 3000 K* According to EU regulation No. 65/2014
Comfort
- Slide switch
. Environment and safety- Fleece filter
- Infinitely adjustable air deflector made of glass
Dimensions
- Device dimensions (HxWxD): 150 x 600 x 482 mm
120 mm, 100 mm
. - Total connected load: 119 W
Technical information
- A standard activated carbon filter is required for recirculation operation (optional accessory)
- Type: fan module/intermediate/substructure hood
- Length of connection cable: 145 cm
- Mindestabstand zur Kochstelle Elektro: 650 mm
- Mindestabstand zur Kochstelle Gas: 650 mm
- Nettogewicht 6.0 kg
- Steuerung: mechanisch
- Anzahl der Leistungsstufen: 3 Lüfterstufen und 1 Intensivstufe
- Lüfterleistung bei höchster Normalstufe Abluft: 250 m³/h
- Lüfterleistung bei höchster Normalstufe Umluft: 80 m³/h
- Max. Luftmenge: 250 m³/h
- Anzahl der Lampen (Stck): 1
- Schallleistung: 65 dB(A) re 1pW
220-240 V
. - Frequency: 50 Hz
. - Plug type: Schuko/Gardy with earthing
-
