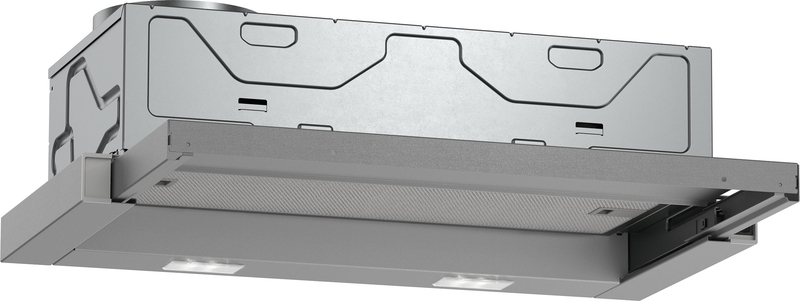

Constructa CD30637, flat screen hood, silver metallic, 60 cm, EEK: C, with 5 year guarantee!
The Constructa flat screen hood with LED and 2-stage fan power for exhaust or recirculation mode.
- LED lighting: Economical and long-lasting - the entire hob in view (with light efficiency class A).
- 2-stage fan performance: Always fresh air – adjustable in 2 stages with a rocker switch.
- Long-lasting metal grease filter: Quick and easy cleaning possible, dishwasher safe.
- Made in Germany: Quality made in Germany.
Design
- 60 cm flat screen hood, metallic silver
- For installation in 60 cm wide wall cabinet
- For exhaust air or recirculation air operation
- A standard recirculation set (special accessory) is required for recirculation mode
Comfort
- Automatic switching on and off when the telescopic extension is operated
- Rocker switch
- Fan performance 2 levels
Features
- Uniform, bright lighting with 2 x 1.5 W LED module
- Color temperature: 3500 K
- Illuminance: 131 lux
- Cassette with aluminum frame
- Long-lasting metal grease filter, dishwasher-safe
Operating mode and performance
- Exhaust air performance according to EN 61591: max. 328 m³/h
- Noise min./max. Normal level: 58/64 dB
- 1 high-performance fan: capacitor motor
Planning and installation information
- Device dimensions (HxWxD): 203 x 598 x 290 mm
- Installation dimensions (HxWxD): 162 x 526 x 290 mm
- Exhaust air connection Ø 150 mm (Ø 120 mm included)
- Length of connection cable: 1.75 m with plug
- Without handle strip (available as an optional accessory)
Environment and safety
- Energy efficiency class: C (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 41.1 kWh/year*
- Fan efficiency class: D*
- Lighting efficiency class: A*
- Grease filter efficiency class: C*
- Total connected load: 93 W
* According to EU regulation No. 65/2014
Technical data:
- Design: flat screen hood
- Length of connection cable: 175.0 cm
- Min. niche dimensions for installation (H x W x D): 162mm x 526.0mm x 290mm
- Minimum distance to the electric hob: 430 mm
- Minimum distance to the gas hob: 650 mm
- Net weight: 7.7 kg
- Control: mechanical
- Number of power levels: 2
- Max. fan output-exhaust air mode: 328 m³/h
- Max. fan output-recirculation mode: 231 m³/h
- Max. air volume: 328 m³/h
- Number of lamps (pcs): 2
- Noise level: 64 dB(A) re 1pW
- Diameter of the exhaust air nozzle: 120 / 150 mm
- Grease filter material: washable aluminum
- EAN number: 4242004251378
- connected load: 93 W
- fuse: 10 A
- voltage: 220-240 V
- frequency: 50 Hz
- Plug type: Schuko/Gardy.with earthing
- Type of installation: Built-in
