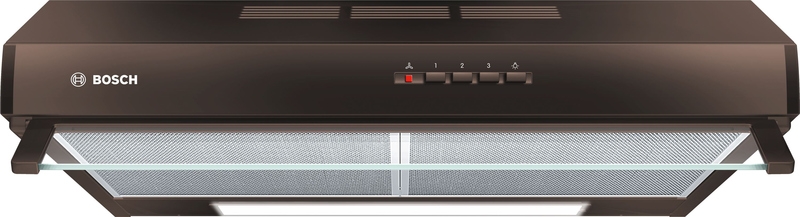

Bosch DUL63CC40 , Series 4, under-unit hood, 60 cm, brown , with 5-year guarantee!
The under-unit hood: place the hood under your upper cabinet or the wall to save space.
- Metal grease filter: ensures an always fresh room climate to feel good before, during and after cooking.
Operating mode and performance
- Noise values according to EN 60704-3 and EN 60704-2-13 max. normal level exhaust air mode: 72 dB(A) re 1 pW (58 dB(A) re 20 µPa sound pressure)
- Max. Fan performance 350 m³/h in exhaust mode according to EN 61591
- Energy efficiency class: D (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 93.3 kWh/year*
- Fan efficiency class: E*
- Grease filter efficiency class: C*
- Lighting efficiency class: E*
- Noise min./max. Normal level: 56/72 dB
- Illuminance: 45 lux
- Color temperature: 3000 K
- * According to EU regulation No. 65/2014
Comfort
- Push button switch
- 3 Power levels
- Choice of exhaust air or recirculation mode
Environment and safety
- Metal grease filter, dishwasher-safe
- Infinitely adjustable glass air guide screen
Dimensions
- Exhaust air nozzle Ø 120 mm, 100 mm
- Total connected load: 146 W
Technical information
- For mounting under a wall cabinet or on the wall
- A standard activated carbon filter is required for recirculation mode (special accessory)
- Design: fan module/intermediate/under-unit hood
- Length of connection cable: 145 cm
- Minimum distance to the electric hob: 650 mm
- Minimum distance to the gas hob: 650 mm
- Net weight 6.4 kg
- Control: mechanical
- Number of power levels: 3 fan level
- Fan performance at the highest normal level, exhaust air: 350 m³/h
- Fan performance at the highest normal level circulating air: 110m³/h
- Max. air volume: 350 m³/h
- Number of lamps (pcs): 2
- Sound power: 72 dB(A) re 1pW
- Diameter of the exhaust air connection: 100 / 120 mm
- Material of the grease filter: aluminum washable
- EAN number: 4242002968490
- Connection value: 146 W
- Voltage: 220-240V
- Frequency: 50 Hz
- Plug type: Schuko/Gardy with grounding
- Device type: Undercounter device
