For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

• Energy-saving fan with EC technology

• complete BORA system

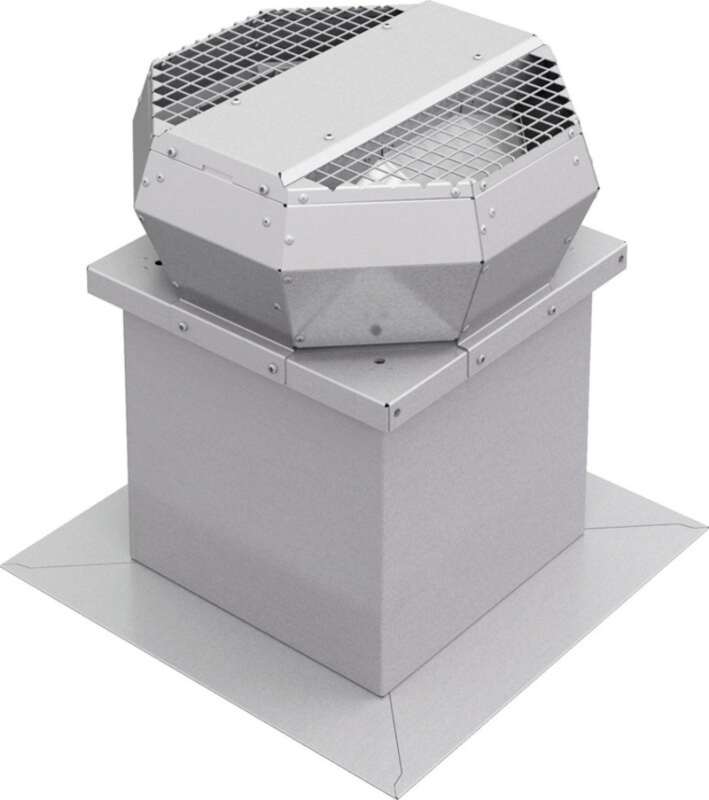

• 1 x flat roof ventilator ULF

• Fabric hose with non-return valve

• 4 x folding ferrite

• Assembly instructions

• Connection voltage 220 - 240 V

• Frequency 50 Hz

• Power consumption 179 W

• Current consumption 1.5 A

• Length of mains connection cable 10 m

• Length of control cable 10 m

• Dimensions (width x depth x height) 388 x 388 x 467 mm

• Weight (including accessories/packaging) 16.5 kg

• Housing material: galvanized steel / aluminum
• Duct connection Ø 150 – 155 mm

• Maximum ambient temperature 70°C

• Delivery volume maximum 955 m³/h

• Static pressure maximum 657 Pa

• WEEE no. 29933567

• If there are two fan modules in an exhaust air duct system, a minimum distance of 3 m should be maintained between these two fans

• For installation on a flat roof

• The fully flexible fabric hose on the fan can be stretched from the top plate by a maximum of 400 mm to the inside of the building
• Air outlet upwards

• If necessary, a condensation water separator must be installed

• Fasteners must be provided on site

• Not suitable for blower door test
