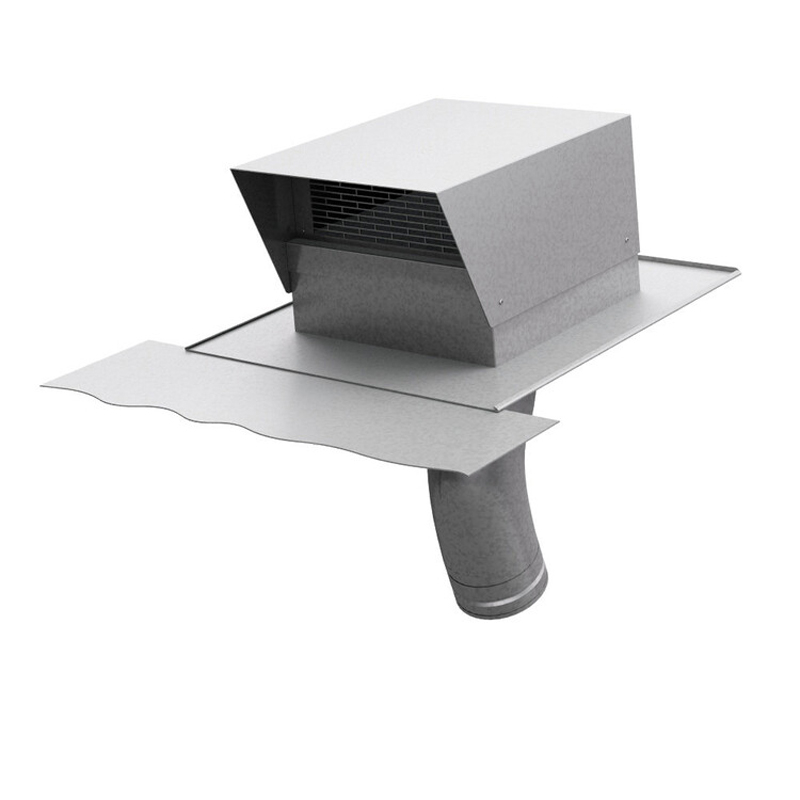

BORA tile roof fan EC, ULZ
Product description
- Energy-saving fan with EC technology
- complete BORA system
Scope of delivery
- 1 x tile roof ventilator ULZ
- Fabric hose with non-return valve
- 4 x folding ferrite
- Assembly instructions
Technical data and planning information
- Connection voltage 220 - 240 V
- Frequency 50 Hz
- Power consumption 206 W
- Current consumption 1.66 A
- Length of mains connection cable 10 m
- Length of control cable 10 m
- Dimensions (width x depth x height) 390 x 500 x 280 mm
- Weight (including accessories/packaging) 16.5 kg
- Housing material: galvanized steel / stainless steel
- Duct connection Ø 150 - 155 mm
- Maximum ambient temperature 70°C
- Delivery volume maximum 1007 m³/h
- Static pressure maximum 608 Pa
- WEEE no. 29933567
- If there are two fan modules in an exhaust air duct system, a minimum distance of 3 m should be maintained between these two fans
- For installation on a tiled roof with a roof pitch of at least 10°
- The fully flexible fabric hose on the fan can be stretched from the top plate by a maximum of 400 mm to the inside of the building
- Air outlet downwards
- If necessary, a condensation water separator must be installed
- Fasteners must be provided on site
- Not suitable for blower door test
