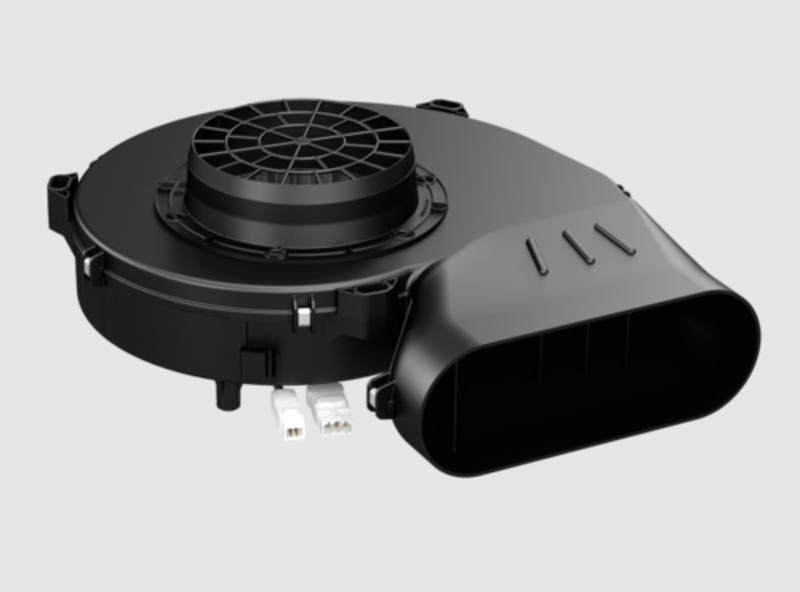

BORA base fan EC, ULS
Product description
- Variable installation options
- Energy-saving fan with EC technology
- Compact Geometry
- low weight
- Sound and vibration decoupling
- Simplified assembly
- complete BORA system
Scope of delivery
- 1 x base fan ULS
- Assembly instructions
Technical data and planning information
- Connection voltage 200 - 240 V
- Frequency 50/60 Hz
- Power consumption 170 W
- Current consumption max. 1.4 A
- Length of mains connection cable 0.6 m
- Length of control cable 0.6 m
- Dimensions (width x depth x height) 370 x 388 x 100 mm
- Weight (including accessories/packaging) 2.85 kg
- Material housing plastic
- Duct connection BORA Ecotube
- Maximum ambient temperature 40 °C
- Delivery volume maximum 750 m³/h
- Static pressure maximum 587 Pa
- WEEE no. 29933567
- For suspended installation, a drill hole diameter of 180 mm must be provided for the ceiling breakthrough
- For installation lying in the base area, in the floor structure or suspended from the basement ceiling
- Integrated mounting points for ceiling mounting
- Removable inlet connection for base heights from 100 mm
