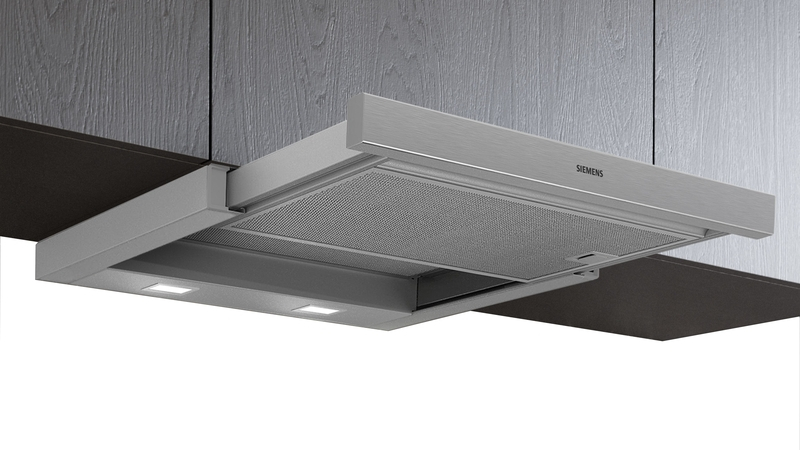

Siemens LI63LA526, iQ100, flat screen hood, 60 cm, silver metallic, EEK: C
INCLUDING 5 YEARS WARRANTY * (for the countries Germany, Denmark, Czech Republic, Poland, Austria, France, Luxembourg, Belgium, Netherlands and Switzerland)
The powerful flat screen hood for almost invisible placement in the upper cabinet.
- LED lighting: Brightens the hob optimally and saves energy
Design
- 60 cm flat screen hood, metallic silver
- For special wall cabinets (60 cm wide)
- Optional exhaust air or recirculation mode
- A standard recirculation set (special accessory) is required for recirculation mode
Comfort
- Automatic switching on and off when the telescopic extension is operated
- Rocker switch
- 2 performance levels
Equipment
- Even, bright lighting with 2 x 1.5 W LED module
- Color temperature: 3500 K
- Illuminance: 131 lux
- Cassette with aluminum frame
- Metal grease filter, dishwasher safe
Operating mode and performance
- Exhaust air capacity according to EN 61591: max. 328 m³/h
- Noise values according to EN 60704-2-13 max. normal level exhaust air mode: noise, highest normal level: 64 dB dB(A) re 1 pW
- Noise min./max. Normal level: 58/64 dB
- 1 high-performance blower: capacitor motor
Planning information
- Device dimensions (HxWxD): 203 x 598 x 290 mm
- Installation dimensions (HxWxD): 162 x 526 x 290 mm
- Exhaust air connection Ø 150 mm (Ø 120 mm included)
- Length of connection cable: 1.75 m with plug
- Without handle bar (available as an optional accessory)
Environment and safety
- Energy efficiency class: C (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 41.1 kWh/year*
- Fan efficiency class: D*
- Lighting efficiency class: A*
- Grease filter efficiency class: C*
- Total connected load: 93 W
Technical data
- Design: flat screen hood
- Length of connection cable: 175.0 cm
- Niche dimensions for installation (H x W x D): 162mm x 526.0mm x 290mm
- Device height: 203 mm
- Minimum distance to the electric hob: 430 mm
- Minimum distance to the gas hob: 650 mm
- Net weight: 8.0 kg
- Control: mechanical
- Number of power levels: 2
- Fan performance at the highest normal level for exhaust air: 328 m³/h
- Fan performance at the highest normal level circulating air: 231 m³/h
- Max. air volume: 328 m³/h
- Number of lamps (pcs): 2
- Noise: 64 dB(A) re 1pW
- Diameter of the exhaust air connection: 120 / 150 mm
- Grease filter material: washable aluminum
- EAN number: 4242003880043
- Connection value: 93 W
- Fuse: 10 A
- Voltage: 220-240V
- Frequency: 50 Hz
- Plug type: Schuko/Gardy with grounding
- Device type: Integrable
* According to EU regulation No. 65/2014
