For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

• Handle strips: personal color design for your extractor hood with the handle strips available as accessories.
• LED lighting: The energy-saving lighting ensures good and bright illumination of the hob.
  .
• Even, bright lighting with 2 x 1.5 W LED module

• Color temperature: 3500 K

• Illuminance: 131 lux

• 2 metal grease filters

Exhaust air performance:

• According to EN 61591 and EN/IEC 60704-2-13, the device achieves the following values ​​in exhaust air mode:

• Performance level 1: Fan performance: 276 m3/h;

• Noise value: 61 dB(A) re1pW

• Performance level 2: Fan performance: 351 m3/h ;

• Noise value: 65 dB (A) re1pW

• Energy efficiency class: C (on an energy efficiency class scale from A+++ to D)

• Average energy consumption: 43.5 kWh/year*

• Fan efficiency class: D*

• Lighting efficiency class: A*

• Grease filter efficiency class: C*

Recirculation air performance

• A standard recirculation set (special accessory) is required for recirculation operation
• According to EN 61591 and EN/IEC 60704-2-13, the device achieves the following values ​​in recirculation mode with the Clean Air Standard recirculation set (available as a special accessory):

• Performance level 1: Fan performance: 190 m3/h; Noise value: 66 dB(A) re1pW

• Performance level 2: Fan performance: 220 m3/h; Noise value: 69 dB (A) re1pW)

Information on planning and installation

• Device dimensions (HxWxD): 203 x 598 x 290 mm

• Installation dimensions (HxWxD): 162 x 526 x 290 mm

• Length of connection cable: 1.75 m with plug

• Pipe diameter: Ø 150 mm

• Handle strip available as a special accessory

Technical data

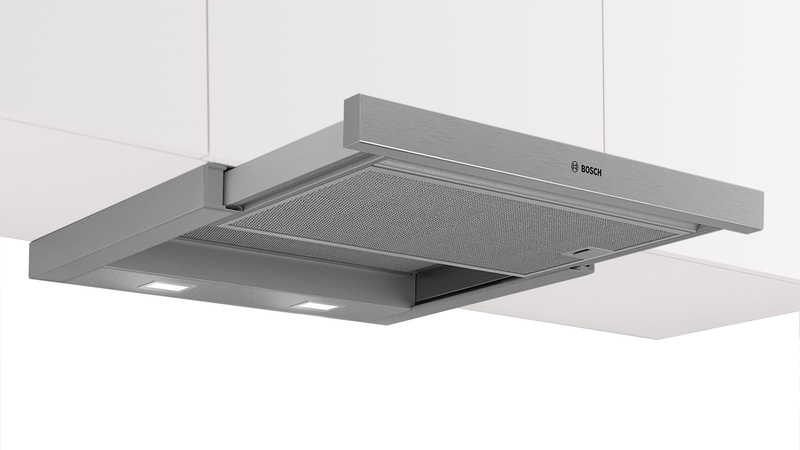

• Design: flat screen hood
• Length of connection cable: 175 cm
• Niche dimensions for installation mm (HxWxD): 162mm x 526.0mm x 290mm mm
• Device height: 203 mm
• Minimum distance to the electric hob: 430 mm
• Minimum distance to the gas hob: 650 mm
• Net weight: 8.6 kg
• Control: Mechanical
• Number of power levels: 2
• Fan performance at the highest normal level, exhaust air: 351 m³/h
• Fan performance at the highest normal level circulating air: 220 m³/h
• Max. air volume: 351 m³/h
• Number of lamps (pcs): 2
• Sound power: 65 dB(A) re 1pW
• Diameter of the exhaust air nozzle: 150 mm
• Material of the grease filter: Washable aluminum
• EAN number: 4242005538119
• Connection value: 93 W
• Fuse: 10 A
• Voltage: 220-240 V
• Frequency: 50 Hz
• Plug type: Schuko/Gardy with earthing
• Device type: Built-in
