For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

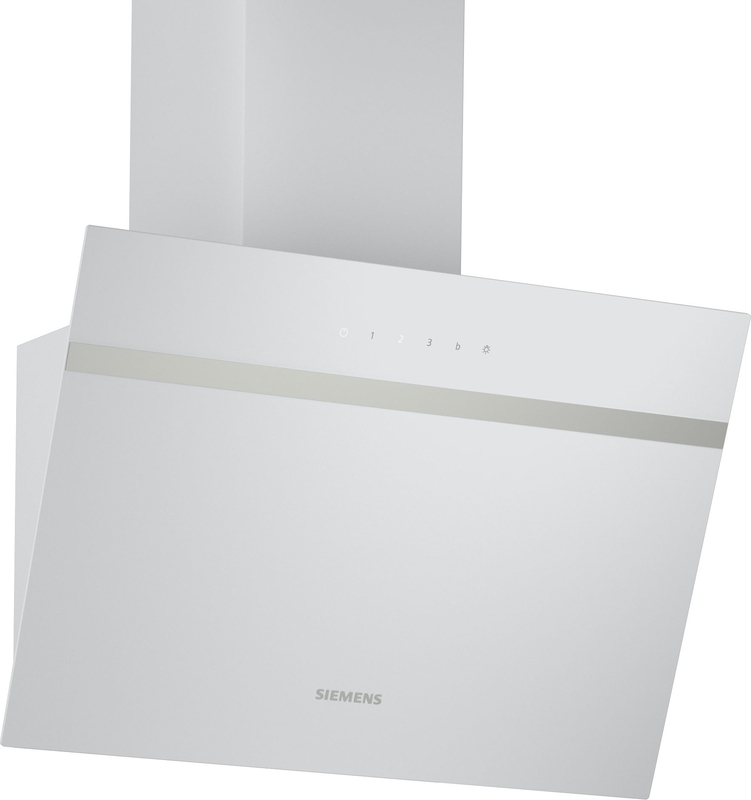

Siemens LC65KDK20, iQ100, headroom hood, 60 cm, white with glass shade, EEK: A
INCLUDING 5 YEARS WARRANTY * (for the countries Germany, Denmark, Czech Republic, Poland, Austria, France, Luxembourg, Belgium, Netherlands and Switzerland)
The sloping kitchen with touch control and quiet motor for an odor-free and noise-free kitchen.
- Intensive level with automatic downshift: full power - but only as long as you need it.
- For quiet moments: the pleasantly quiet motor.
- touchControl: Trigger power and LED lighting can be adjusted with just one touch.
- LED lighting: Illuminates the hob optimally and saves energy
- Filter saturation: automatic reminders to clean and replace the filters.
Design
- 60 cm
- Oblique Esse
- Wall mounting
- Glass pane: Clear glass printed in white
- Optional exhaust air or recirculation mode
- A standard recirculation set (special accessory) is required for recirculation mode
Most important features
- Capacitor Motor
- Workplace lighting with 2 x 3 W LED modules
- Color temperature: 4000 K
- Illuminance: 127 lux
- 1 metal grease filter
Comfort functions
- Electronic control via touchControl operation, backlit
- 3 performance levels and 1 intensive level
- Automatic reset from intensive to normal level after 5 minutes
- Saturation display for grease and odor filters
Comfort during cleaning
- The surfaces and materials are smooth and easy to clean.
- Metal grease filter, dishwasher safe
Output exhaust air
- According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values in exhaust mode:
- Performance level 1: Fan performance: 220 m3/h; Noise value 46 dB(A) re1pW
- Performance level 2: Fan performance: 315 m3/h; Noise value 53 dB (A) re1pW
- Performance level 3: Fan performance: 430 m3/h; Noise value 60 dB (A) re1pW
- Intensive level 1: Fan performance: 550 m3/h; Noise value 65 dB (A) re1pW
- Energy efficiency class: A (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 43.8 kWh/year*
- Fan efficiency class: A*
- Lighting efficiency class: A*
- Grease filter efficiency class: E*
Recirculation air performance
- According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values in recirculation mode with the standard recirculation set (available as an optional accessory):
- Performance level 1: Fan performance 215 m3/h; Noise value 51 dB(A) re1pW
- Performance level 2: Fan performance 300 m3/h; Noise value 61 dB(A) re1pW
- Performance level 3: Fan performance 445 m3/h ; Noise value 69 dB(A) re1pW
- Intensive level 1: fan performance 550 m3/h; Noise value 72 dB (A) re1pW
Technical data and sustainability
- Consumption information:
- Total connected load: 223 W
- Voltage: 220 - 240 V
Planning and installation
- Device dimensions, exhaust air (HxWxD): 690-900 x 590 x 325 mm
- Device dimensions for circulating air (HxWxD): 720-975 x 590 x 325 mm
- Exhaust air connection Ø 150 mm
- Length of connection cable: 1.5 m with plug
- Delivery with backflow flap
Technical data
- Type: wall mounting
- Length of connection cable: 150.0 cm
- Device height: 325 mm
- Minimum distance to the electric hob: 450 mm
- Minimum distance to the gas hob: 650 mm
- Net weight: 10.7 kg
- Control: electronic
- Number of power levels: 3 fan levels and 1 intensive level
- Fan performance at the highest normal level for exhaust air: 430 m³/h
- Fan performance at intensive circulating air level: 550.0 m³/h
- Fan performance at the highest normal level circulating air: 445 m³/h
- Fan performance at intensive exhaust air level: 550 m³/h
- Max. air volume: 430 m³/h
- Number of lamps (pcs): 2
- Noise: 60 dB(A) re 1pW
- Diameter of the exhaust air connection: 150 mm
- Grease filter material: washable aluminum
- EAN number: 4242003936573
- Connection value: 223 W
- Fuse: 4 A
- Voltage: 220-240V
- Frequency: 50 Hz
- Plug type: Schuko/Gardy with grounding
- Device type: Wall mounting
* According to EU regulation No. 65/2014
