For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

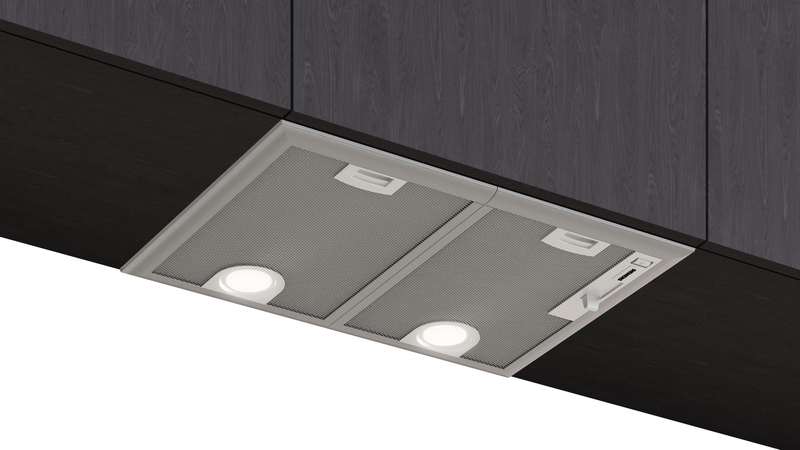

Siemens LB55566, iQ300, fan module, 53 cm, silver metallic, EEK: D, with 5-year guarantee!
INCLUDING 5 YEARS WARRANTY * (for the countries Germany, Denmark, Czech Republic, Poland, Austria, France, Luxembourg, Belgium, Netherlands and Switzerland)
The fan module offers design freedom - for mounting on the wall or above a kitchen island.
- LED lighting: Illuminates the hob optimally and saves energy
- Extended availability of spare parts: for the longevity of your household appliances.
Exhaust air output
- 3 power levels and 1 intensive level
- According to EN 61591 and EN/IEC 60704-2-13, the device can achieve the following values in exhaust air mode:
- Performance level 1: Fan performance 224 m3/h; Noise value 46 dB(A) re1pW
- Performance level 2: Fan performance 365 m3/h; Noise value 57 dB (A) re1pW
- Performance level 3: Fan performance 460 m3/h; Noise value 63 dB (A) re1pW
- Intensive level 1: Fan performance 604 m3/h; Noise value 68 dB (A) re1pW
- Energy efficiency class: D (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 89.4 kWh/year*
- Lighting efficiency class: A*
- Grease filter efficiency class: B*
Performance Recirculating air
- A standard activated carbon filter is required for recirculating air mode (special accessory)
- According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values in recirculation mode with the standard recirculation set (available as an optional accessory):
- Performance level 1: Fan performance 150 m3/h; Noise value 56 dB(A) re1pW
- Performance level 2: Fan performance 248 m3/h; Noise value 67 dB(A) re1pW
- Performance level 3: Fan performance 302 m3/h ; Noise value 71 dB(A) re1pW
- Intensive level 1: fan performance 346 m3/h; Noise value 73 dB (A) re1pW
Environment and safety
- Total connected load: 206 W
- Voltage: 220 - 240 V
- Made in Germany: manufactured in a CO2-neutral production facility
Technical information
- Device dimensions (HxWxD): 215 x 530 x 380 mm
- Installation dimensions (HxWxD): 215 x 500 x 350 mm
- Length of connection cable: 1.3 m with plug
- Exhaust air socket Ø 150 mm
Technical data
- Type: fan module/intermediate/substructure hood
- Length of connection cable: 130.0 cm
- Niche dimensions for installation (H x W x D): 215 mm x 500.0 mm x 350 mm
- Device height: 215 mm
- Minimum distance to the electric hob: 650 mm
- Minimum distance to the gas hob: 650 mm
- Net weight: 7.3 kg
- Control: mechanical
- Number of power levels: 3 fan levels and 1 intensive level
- Fan performance at the highest normal level for exhaust air: 460 m³/h
- Fan performance at intensive circulating air level: 346.0 m³/h
- Fan performance at the highest normal level circulating air: 302 m³/h
- Fan performance at intensive exhaust air level: 604 m³/h
- Max. air volume: 460 m³/h
- Number of lamps (pcs): 2
- Noise: 63 dB(A) re 1pW
- Diameter of the exhaust air connection: 150 mm
- Grease filter material: washable aluminum
- EAN number: 4242003979297
- Connection value: 206 W
- Fuse: 10 A
- Voltage: 220-240V
- Frequency: 50 Hz
- Plug type: Schuko/Gardy with grounding
- Device type: Integrable
