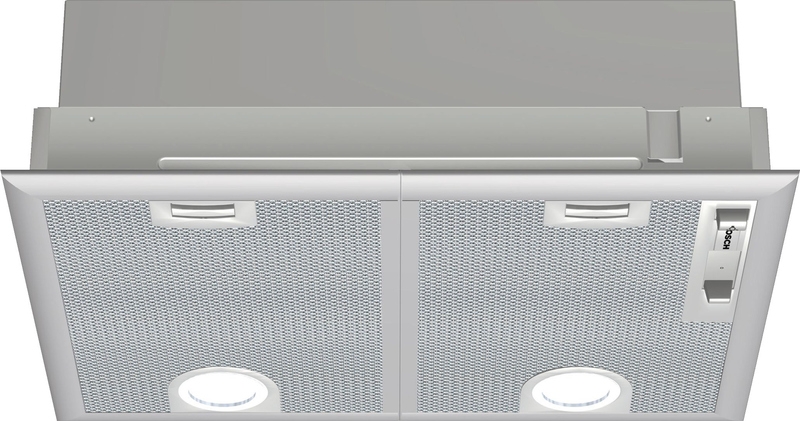

Bosch DHL555BL, fan module, series 4, silver, 53 cm, EKK: C, with 5 year guarantee!

• High fan performance: excellent exhaust air performance of the extractor hood
• Metal grease filter: ensures a constantly fresh room climate to feel good before, during and after cooking.

Operating mode and performance

• For prepared cupboards, food, etc. as well as kitchen islands
• A standard activated carbon filter is required for recirculation mode (special accessory)
• Noise values ​​according to EN 60704-2-13 for exhaust mode:

• Max. normal level: 56dB(A) re 1 pW

• Intensive level:68 dB(A) re 1 pW

• Fan performance according to EN 61591 in exhaust mode:

• Max. normal level: 362m³/h

• Intensive level: 618 m³/h

• Energy efficiency class: C (on an energy efficiency class scale from A+++ to D)

• Average energy consumption: 79.8 kWh/year*

• Fan efficiency class: D*

• Grease filter efficiency class: B*

• Lighting efficiency class: A*

• Noise min./max. Normal level: 38/56 dB

• 2 fan motors

• Workplace lighting with 2 x LED spots 2.15W (low voltage)

• Illuminance: 438 lux

• Color temperature: 3500 K
  * According to EU regulation No. 65/2014

Environment and safety

• Metal grease filter with aluminum frame, dishwasher-safe

Dimensions

• Device dimensions (HxWxD): 255 x 530 x 380 mm
• Installation dimensions (HxWxD): 255 x 500 x 350 mm
• Exhaust air socket Ø 150 mm, 120 mm
• Total connected load: 206 W

Technical information

• Design: Fan module/intermediate/substructure hood

• Length of connection cable: 130.0 cm

• Min. niche dimensions for installation (H x W x D): 255mm x 500.0mm x 350mm

• Minimum distance to the electric hob: 650 mm

• Minimum distance to the gas hob: 650 mm

• Net weight: 7.5 kg

• Control: mechanical

• Number of power levels: 3 fan levels and 1 intensive level

• Fan performance at the highest normal level for exhaust air: 363 m³/h

• Fan performance at intensive circulating air level: 395.0 m³/h

• Fan performance at the highest normal level circulating air: 268 m³/h

• Fan performance at intensive exhaust air level: 618 m³/h

• Max. air volume: 363 m³/h

• Number of lamps (pcs): 2

• Sound power: 56 dB(A) re 1pW

• Diameter of the exhaust air connection: 120 / 150 mm

• Grease filter material: washable aluminum
• EAN number: 4242005122455

• Connection value: 206 W

• Fuse: 10 A

• Voltage: 220-240V

• Frequency: 50 Hz

• Plug type: Schuko/Gardy with grounding

• Device type: Built-in
