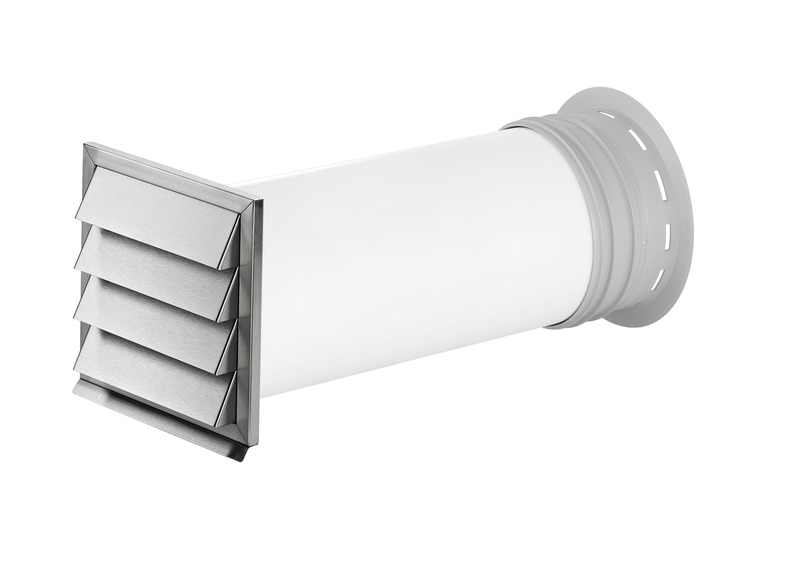

Naber COMPAIR® PRIME flow P-Klima-E 150 wall box, stainless steel, round, 4051078
The COMPAIR PRIME Flow® P-Klima-E 150 wall box is a component for kitchen ventilation in reliably high quality. It belongs to the extensive COMPAIR® PRIME flow family with its carefully coordinated components and channels. The aim is to optimize the indoor climate in the kitchen. The wall duct in white is made of durable stainless steel and is designed for a maximum wall thickness of 550 mm. If necessary, it can be shortened to 220 mm. The associated backflow flap ensures that no cold air from outside penetrates into the room through the extractor hood. Depending on the circumstances, installation takes place at ceiling height or near the floor. A core hole with a diameter of Ø 162 or 164 mm is required. Thanks to the intelligent N-click system, a secure connection to the system-related universal connector in round is possible. Based on this, the direct connection is made to flat adapters, round tubes or round bends. The connection diameter is 150 mm. The associated wall sleeve with three lip seals enables tool-free installation and also serves to seal leaks.
Version
- Wall box, with backflow flap.
- N-click system for a secure connection with the universal connector
— Direct connection of flat adapter, round tube or round elbows — max. wall thickness 550 mm, can be shortened to 220 mm
— Core hole drilling with a nominal diameter of 162 or 164 mm — Wall sleeve for tool-free assembly and sealing against leaks - Connection diameter: 150 mm
- Outer diameter: 190 mm
- Inner diameter: 151.6 mm
- Diameter: 150 mm
- Properties: can be shortened to 220 mm
- System dimensions: 150
- Area of use and application: Outdoor
- Suitable wall thickness: max. wall thickness 550 mm
Important shipping information for individual orders (only applies to orders of this item without the actual main item)! No individual shipping possible!
This item is purely an accessory item; which we created only for those cases; in which those who order the corresponding main item in our shop can also order the corresponding accessories at the same time. In this respect, individual shipping of this item (order without the main item; for which this accessory item is intended) is not possible (even if our shop system would allow this; since a corresponding block cannot be set up for each item).
For individual orders of this accessory item, we would state in our order confirmation; which is the basis for the conclusion of the purchase contract; give a hint about it; that we cannot comply with the execution for the said reason.
For individual orders of this accessory item, we would state in our order confirmation; which is the basis for the conclusion of the purchase contract; give a hint about it; that we cannot comply with the execution for the said reason.
