For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

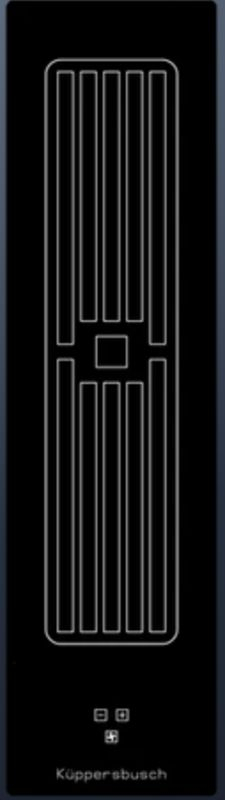

Küppersbusch VKM 1820.0 SR, 14cm, VarioLine trough fan, frameless, INCLUDING 5 YEAR MANUFACTURER WARRANTY! * (Conditions manufacturer's warranty)
Special features and general information:
- KB 5-year guarantee
Küppersbusch products meet the highest quality standards. 5 year guarantee on all built-in devices!
- KB sensor operation
One tap of the finger is enough and the functions of the sensor buttons are triggered.
Equipment
- Pedestal fan
- 4-stage power control “selectControl” with red display
- Fan performance in exhaust mode: max. normal level 455 m³/h, intensive level 551 m³/h
- Noise level: min. 31 dB, max. 66 dB, internal 70 dB
- Digital display
- Metal grease filter with 96.7% grease separation
- Automatic overrun
- Central shutdown
- Holiday switching (operating time limitation)
- Recirculation mode possible (see special accessories)
- Ventilation grille included
- Frame profiles included
- Exhaust air system included
Technical data:
- Connection value 0.1 kW (ready to plug in)
- Exhaust air connection base fan Naber Compair Flow NW 150
- Energy class/consumption A / 55 kW
- Filter class/grease separation efficiency A / 96.7%
- Device dimensions W x D approx. 138 x 518 mm
- Installation height 170 mm
- Cutout dimensions W x D approx. 120 x 490 mm
- (for flush installation, please note the dimensional drawing)
Note:
- When combining the VKM 1820.0 with the VarioLine gas hobs GKS 3820.0 or GWS 3811.0, the special accessory gas deflector accessory ZKM 8053 is required.
- Cannot be installed to the left of Teppan Yaki or wok.
* Information about the manufacturer's warranty
The manufacturer offers a 5-year guarantee throughout Germany on the delivered item Küppersbusch VKM 1820.0. If material or manufacturing defects occur during this period, the manufacturer will provide one of the following services at its discretion under the guarantee:
• Repair of the item Küppersbusch VKM 1820.0
• Exchange for an equivalent or new item Küppersbusch VKM 1820.0 (possibly also a successor model).
In the event of a warranty claim, please contact:
Küppersbusch Hausgeräte GmbH
Küppersbuschstrasse 16
45883 Gelsenkirchen
Tel: +49 (0) 209 / 401-0
Fax: +49 (0) 209 / 401-303
Note:
Your statutory warranty rights towards us remain unaffected. If the purchased item is defective, you can contact us in any case, regardless of whether the warranty case occurs and whether the warranty is claimed or not.
