For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues so that they can then be wiped off much more easily

• Metal grease filter: ensures an always fresh room climate to feel good before, during and after cooking.

Design

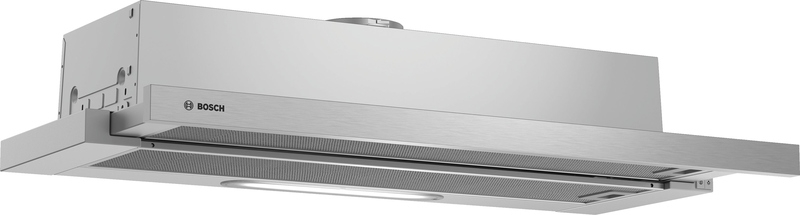

• 90 cm flat screen hood, silver
• For installation in a 90 cm wide special wall cabinet
• Choice of exhaust air or recirculation mode


Performance

• Max. fan performance 368 m³/h in exhaust mode according to EN 61591
• Noise min./max. Normal level: 62/68 dB
• Noise values according to EN 60704-3 and EN 60704-2-13 max. Normal level for exhaust air operation: 68 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
• Motor exhaust air connection Ø 120 mm (Ø 120 mm included)

• Supplied with backflow flap

Planning and installation information

• Device dimensions (HxWxD): 180 x 898 x 280 mm

• Installation dimensions (HxWxD): 140 x 760 x 280 mm

Technical information

• Design: flat screen hood

• Length of connection cable: 150.0 cm

• Min. niche dimensions for installation (H x W x D): 140mm x 760.0mm x 280mm

• Minimum distance to the electric hob: 500mm

• Minimum distance to the gas hob: 650 mm

• Net weight: 8.3 kg

• Control: mechanical

• Number of power levels: 3

• Fan performance at the highest normal level, exhaust air: 368 m³/h

• Fan performance at the highest normal level circulating air: 140 m³/h

• Max. air volume: 368 m³/h

• Number of lamps (pcs): 2

• Sound power: 68 dB(A) re 1pW

• Diameter of the exhaust air connection: 120 mm

• Grease filter material: washable aluminum

• EAN number: 4242002976532
• Connection value: 146 W

• Fuse: KSA A
• Voltage: 220-240 V

• Frequency: 50; 60Hz

• Plug type: Schuko/Gardy with grounding

• Device type: Built-in
