For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

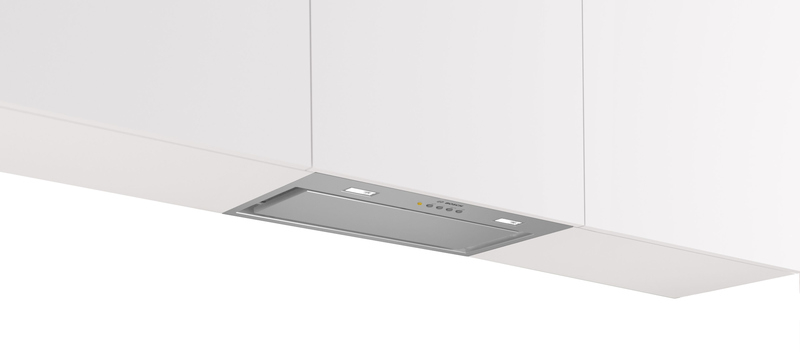

Bosch DLN56AC50, fan module, Series 6, stainless steel, 52 cm, EKK: B, with 5-year guarantee!

• LED lighting: the energy-saving lighting ensures clear and bright illumination of the hob.
• Metal grease filter: ensures an always fresh room climate to feel good before, during and after cooking.

Design

• Fan module stainless steel

• For mounting in a kitchen cabinet

• Flush installation for seamless integration into wall cabinets.

• Choice of exhaust air or recirculation mode

• For operation in recirculated air, various recirculation sets are available and necessary as optional accessories.

Most important features:

• Workplace lighting with 2 x LED spots 1W

• Color temperature: 4000 K

• Illuminance: 400 lux

• capacitor motor

• 1 metal grease filter

Comfort functions

• Short-stroke buttons with short-stroke buttons and LED display

• 3 performance levels and 1 intensive level

• Automatic reset from intensive to normal level after 6 minutes

Comfort when cleaning:

• Metal grease filter, dishwasher safe

• The surfaces and materials are smooth and easy to clean.

Exhaust air performance

• According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values ​​in exhaust air mode:

• Performance level 1: Fan performance: 295 m3/h; Noise value 50 dB(A) re1pW

• Performance level 2: Fan performance: 445 m3/h; Noise value 59 dB (A) re1pW

• Performance level 3: Fan performance: 570 m3/h; Noise value 66 dB (A) re1pW

• Intensive level 1: Fan performance: 645 m3/h; Noise value 68 dB (A) re1pW

• Energy efficiency class: B (on an energy efficiency class scale from A+++ to D)

• Average energy consumption: 75.2 kWh/year*

• Fan efficiency class: C*

• Lighting efficiency class: A*

• Grease filter efficiency class: D*

Recirculation air performance

• According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values ​​in recirculation mode with the standard recirculation set (available as an optional accessory):

• Performance level 1: Fan performance 230 m3/h; Noise value 62 dB(A) re1pW

• Performance level 2: fan performance 330 m3/h; Noise value 69 dB(A) re1pW

• Performance level 3: Fan performance 400 m3/h ; Noise value 72 dB(A) re1pW

• Intensive level 1: fan performance 410 m3/h; Noise value 74 dB (A) re1pW
• According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values ​​in recirculation mode with the Clean Air plus recirculation set for chimney-free installation:

• Performance level 1: Fan performance: 280 m3/h; Noise value: 56 dB(A) re1pW

• Performance level 2: Fan performance: 430 m3/h; Noise value: 69 dB(A) re1pW

• Performance level 3: Fan performance: 560 m3/h; Noise value: 69 dB(A) re1pW

• Intensive level 1: Fan performance: 628 m3/h; Noise value: 72 dB (A) re1pW

Technical data and sustainability:

• Total connected load: 252 W

• Voltage: 220 - 240 V

• Sustainability: Environmentally friendly packaging

• Available odor filter as a regenerable long life filter with a service life of 10 years

Information on planning and installation:

• Device dimensions (HxWxD): 345 x 520 x 282 mm

• Device dimensions for circulating air (HxWxD): 345-345 x 520 x 282 mm

• Installation dimensions (HxWxD): 345 x 496 x 264 mm

• Observe dimensions and installation instructions for this device according to the technical drawing

• Length of connection cable: 1.5 m with plug

• Exhaust air connection Ø 150 mm
