For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

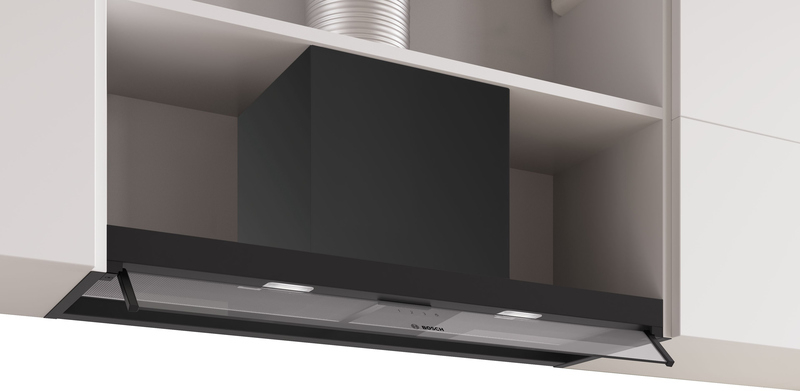

Bosch DBB95CC60, Series 4, Integrated design hood, 90 cm, clear glass, matt black, EEK: B, with 5-year guarantee!
INCLUDING 5 YEARS WARRANTY * (for the countries Germany, Denmark, Czech Republic, Poland, Austria, France, Luxembourg, Belgium, Netherlands and Switzerland)
The hood is installed under the upper cabinet to save space.
- Seamless integration: flush installation for an elegant, almost invisible appearance.
- Button control: simple and convenient adjustment of your extractor hood.
- Maximum storage space: The T-shaped design offers plenty of space and a load capacity of up to 20 kg.
- Dual filter system: efficient and long-lasting air and odor filtration.
- LED lighting: Bright, energy-saving and reliable lighting when cooking.
Design
- Installation in a wall cabinet. Flush installation for seamless integration into wall cabinets.
- Glass shade: clear glass
- Increased storage space: up to 10 kg capacity on each side of the extractor hood
- Choice of exhaust or recirculation mode
Features and comfort
- Energy-efficient capacitor motor
- 2 x LED 1.5 W
- Color temperature: 3500 K
- Illuminance: 290 lux
- 2 metal grease filters, dishwasher safe
- Foldable glass shade for additional haze capture
- Cabinet protection: additional side and rear protection against fumes
- Push buttons
- 3 power levels
- Coated surface to reduce fingerprints
Exhaust mode
- According to EN 61591 and EN/IEC 60704-2-13, the device can achieve the following values in exhaust mode:
- Performance level 1: fan output 349 m3/h; Noise value 54 dB(A) re1pW
- Performance level 2: Fan performance 458 m3/h; Noise value 60 dB(A) re1pW
- Performance level 3: Fan performance 583 m3/h; Noise value 65 dB (A) re1pW
- Energy efficiency class: B (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 70.5 kWh/year*
- Fan efficiency class: B*
- Lighting efficiency class: A*
- Grease filter efficiency class: B*
Recirculation mode
- A Long-Life Clean Air recirculation set (special accessory) is required for recirculation mode
- The Long-Life Clean Air odor filter absorbs intense odors such as: B. fish, as well as pollen. The lifespan can be extended up to 4 times by refreshing the filter in the oven
- According to EN 61591 and EN/IEC 60704-2-13, the device can achieve the following values in recirculation mode with the Long-Life Clean Air recirculation set (available as a special accessory):
- Performance level 1: Fan performance 333 m3/h; Noise value 61 dB(A) re1pW
- Performance level 2: Fan performance 441 m3/h; Noise value 68 dB(A) re1pW
- Performance level 3: Fan performance 521 m3/h; Noise value 72 dB (A) re1pW
Technical data and sustainability
- Total connected load: 200 W
- Voltage: 220 - 240 V
- Made in Germany: manufactured in a CO2-neutral production facility
- Environmentally friendly packaging
- Available Long-Life Clean Air odor filter with up to 4 times longer service life
Information on planning and installation
- For installation in a 90 cm wide special wall cabinet.
- Integrated design hood Comfort installation: simple assembly system
- Device dimensions (HxWxD): 340 x 898 x 298 mm
- Installation dimensions (HxWxD): min. 340 mm x 860 mm x min. 300 mm
- The wall end strips for installation in upper cabinets with a The device comes with a maximum depth of up to 360 mm.
- Chimney extensions are available as optional accessories for installation in higher wall cabinets.
- Exhaust air outlet: Ø 150 mm
- Length of connection cable: 1.3 m with plug
Technical data
- Type: fan module/intermediate/substructure hood
- Length of connection cable: 130.0 cm
- Minimum distance to the electric hob: 430 mm
- Minimum distance to the gas hob: 650 mm
- Net weight: 9.4 kg
- Control: mechanical
- Number of power levels: 3
- Fan performance at the highest normal level for exhaust air: 582 m³/h
- Fan performance at the highest normal level circulating air: 521 m³/h
- Max. air volume: 582 m³/h
- Number of lamps (pcs): 2
- Noise: 65 dB(A) re 1pW
- Diameter of the exhaust air connection: 150 mm
- Material of the grease filter: metal grease filter, washable
- EAN number: 4242005530311
- Connected load: 200 W
- Voltage: 220-240V
- Frequency: 50 Hz
- Plug type: Schuko/Gardy with grounding
- Device type: Integrable
* According to EU regulation No. 65/2014
