For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

Design

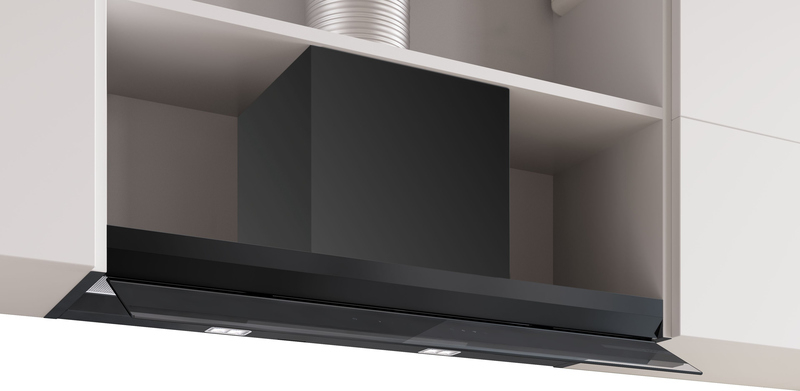

• Installation in a wall cabinet. Flush installation for seamless integration into wall cabinets.
• Glass shade: clear glass with black printing
• Increased storage space: up to 10 kg capacity on each side of the extractor
• Choice of exhaust or recirculation mode

Features

• Eco Silence Drive: the powerful and energy-saving motor
• 2 x LED 3 W
• Color temperature: 3500 K
• Illuminance: 437 lux
• Dimming function: the brightness of the lighting can be adjusted.
• Soft Light

  The dim light emitted from the Soft Light keypad allows you to see the speed level of the hood at a glance.

  : the lighting switches on and off gently.
• 2 metal grease filters, dishwasher safe
• Foldable glass screen for additional vapor capture
• Cabinet protection: additional side and rear protection against fumes
• Push buttons
• 3 power levels
• Coated surface to reduce fingerprints

Comfort functions

• Glass panel with touch control for easy operation and improved vapor absorption.
• Cabinet protection: additional side and rear protection against fumes

• Fans and lighting are automatically switched on and off by opening and closing the glass pane.

• Touch Light: Switch the light on or off automatically when the glass pane is closed by tapping the control area.

• Operation: DirectSelect operation, backlit

• 3 performance levels and 1 intensive level

• Automatic reset from intensive to normal level after 6 min.

• Fan run-on 10 minutes

Digital functions

• Home Connect

  Possibility of controlling the device via app; It is also possible to have suitable settings or programs suggested

  : Operation, checking and setting of the extractor hood via smartphone or tablet (only in countries where the Home Connect service is available)

• The hob-based hood control activates the extractor hood automatically when cooking, thanks to the WiFi connection of the extractor hood and a suitable hob.

• Smart Hood Automatic: The extractor hood automatically adjusts the fan power as the hob continuously sends cooking data (works with all current Series 6 induction hobs; for other Home Connect hobs, the extractor hood can be controlled directly from the hob if a connected Home Connect account is available)

• Voice control possible via common voice assistants - Performance profiles: Choose between standard, performance or quiet in the Home Connect app to increase the fan performance or reduce the noise

• Favorites button: Direct access to favorite functions via a configurable button (available with a connected Home Connect account)

• Smart Home Trigger via the favorites button (available with a connected Home Connect account): Open the smart universe of your extractor hood (partner service required).
• LED lighting with adjustable light temperature: Allows you to adjust the light temperature to personal needs via the Home Connect app

• Saturation display, setting and reset function for grease filters and odor filters available via the Home Connect app.

• Overrun function: available via Home Connect app- Interval function: available via Home Connect app

• The Home Connect functionality can be expanded as desired by integrating numerous applications from external cooperation partners (partnering).
• Updateable device (available with a connected Home Connect account): Always keep the device up to date with the latest software.

Exhaust air mode

• According to EN 61591 and EN/IEC 60704-2-13, the device can achieve the following values ​​in exhaust air mode:

• Performance level 1: Fan performance 244 m3/h; Noise value 42 dB(A) re1pW

• Performance level 2: Fan performance 339 m3/h; Noise value 50 dB (A) re1pW

• Performance level 3: Fan performance 433 m3/h; Noise value 57 dB (A) re1pW

• Intensive level 1: fan performance 699 m3/h; Noise value 68 dB (A) re1pW

• Energy efficiency class: A+ (on an energy efficiency class scale from A+++ to D)

• Average energy consumption: 27.2 kWh/year*

• Fan efficiency class: A*

• Lighting efficiency class: A*

• Grease filter efficiency class: B*

Recirculation mode

• A Long-Life Clean Air recirculation set (special accessory) is required for recirculation mode

• The Long-Life Clean Air odor filter absorbs intense odors such as: B. fish, as well as pollen. The lifespan can be extended up to 4 times by refreshing the filter in the oven
• According to EN 61591 and EN/IEC 60704-2-13, the device can achieve the following values ​​in recirculation mode with the Long-Life Clean Air recirculation set (available as an optional accessory):

• Performance level 1: Fan performance 231 m3/h; Noise value 53 dB(A) re1pW

• Performance level 2: Fan performance 329 m3/h; Noise value 61 dB(A) re1pW

• Performance level 3: Fan performance 413 m3/h; Noise value 66 dB(A) re1pW

• Intensive level 1: fan performance 556 m3/h; Noise value 72 dB (A) re1pW

Technical data and sustainability

• Total connected load: 115 W
• Voltage: 220 - 240 V
• Made in Germany: manufactured in a CO2-neutral production facility
• Environmentally friendly packaging
• Available Long-Life Clean Air odor filter with up to 4 times longer lifespan
• Smart Hood Automatic for best results with minimal energy consumption

Information on planning and installation

• For installation in a 90 cm wide special wall cabinet.
• Integrated design hood Comfort installation: simple assembly system
• Device dimensions (HxWxD): 340 x 898 x 298 mm
• Installation dimensions (HxWxD): min. 340 mm x 860 mm x min. 300 mm
• The wall end strips for installation in upper cabinets with a The device comes with a maximum depth of up to 360 mm.
• Chimney extensions are available as optional accessories for installation in higher wall cabinets.
• Exhaust air outlet: Ø 150 mm
• Length of connection cable: 1.3 m with plug

Technical data

• Type: fan module/intermediate/substructure hood

• Length of connection cable: 130.0 cm

• Minimum distance to the electric hob: 430 mm

• Minimum distance to the gas hob: 650 mm

• Net weight: 12 kg

• Control: electronic
• Number of power levels: 3 fan levels and 1 intensive level
• Fan performance at the highest normal level, exhaust air: 433 m³/h

• Fan performance at intensive recirculation level: 556 m³/h
• Fan performance at the highest normal recirculation level: 413 m³/h

• Fan performance at intensive exhaust level: 699 m³/h
• Max. air volume: 433 m³/h

• Number of lamps (pcs): 2
• Noise: 57 dB(A) re 1pW

• Diameter of the exhaust air connection: 150 mm
• Material of the grease filter: metal grease filter, washable
• EAN number: 4242005527786
• Connected load: 115 W

• Voltage: 220-240V

• Frequency: 50 Hz

• Plug type: Schuko/Gardy with grounding

• Device type: Built-in

* According to EU regulation No. 65/2014
