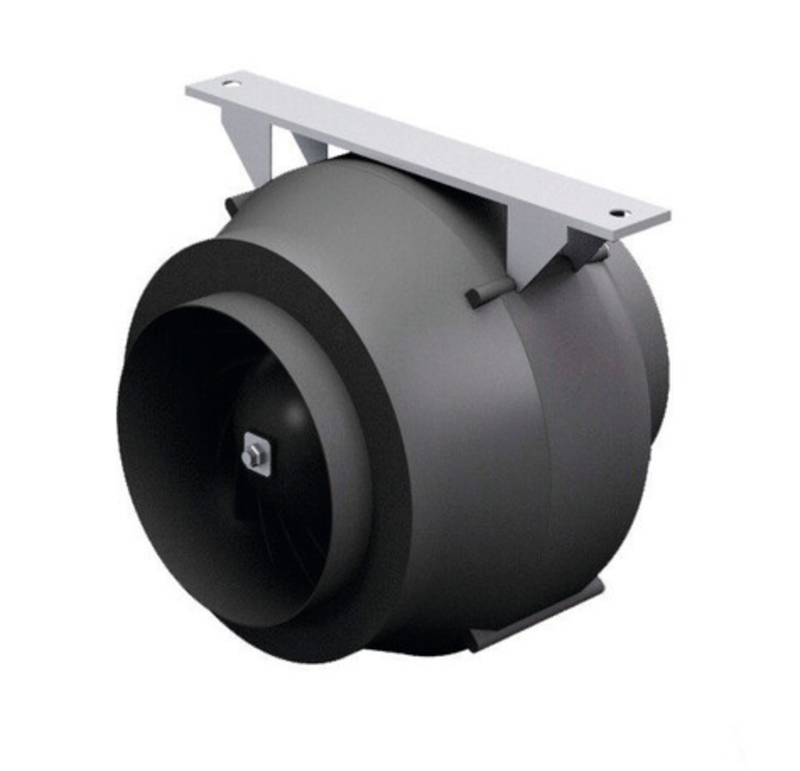

BORA supplementary fan EC, ULIE
Product description
- Energy-saving fan with EC technology
- complete BORA system
Scope of delivery
- 1 x additional tube fan ULIE
- Mounting bracket
- Assembly instructions
Technical data and planning information
- Connection voltage 220 - 240 V
- Frequency 50 Hz
- Power consumption 124 W
- Current consumption 0.6 A
- Length of mains connection cable 10 m
- Dimensions (width x depth x height) 290 x 260 x 243 mm
- Weight (including accessories/packaging) 4.5 kg
- Housing material: plastic / galvanized metal
- Duct connection Ø 150 – 155 mm
- Maximum ambient temperature 55°C
- Delivery volume maximum 749 m³/h
- Static pressure maximum 400 Pa
- WEEE no. 29933567
- If there are two fan modules in an exhaust air duct system, a minimum distance of 3 m should be maintained between these two fans
- For installation in a round pipe duct system with a diameter of Ø 150 mm
- At least 500 mm straight exhaust air path must be provided before and after the fan
- Fasteners must be provided on site
- Not suitable for installation in living areas, not for installation in furniture
- No step control possible (AC fan)
