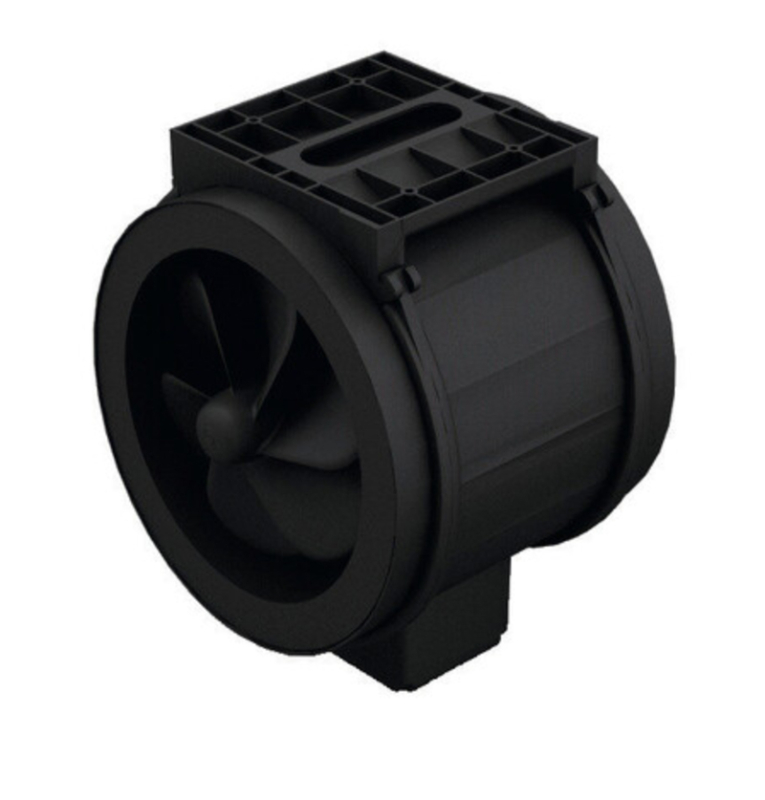

BORA tube fan EC, ULI
Product description
- Energy-saving fan with EC technology
- complete BORA system
Scope of delivery
- 1 x tube fan ULI
- 2 x pipe reduction Ø 250 to 155 mm ULIRR
- 2 x folding ferrite
- Assembly instructions
Technical data and planning information
- Connection voltage 220 - 240 V
- Frequency 50 Hz
- Power consumption 304 W
- Current consumption 2.1 A
- Length of mains connection cable 10 m
- Length of control cable 10 m
- Dimensions (width x depth x height) 250 x 215 (500) x 299 mm
- Weight (including accessories/packaging) 6.0 kg
- Material housing plastic
- Duct connection without reduction Ø 250 mm,
- with reduction Ø 155 mm
- Maximum ambient temperature 45°C
- Delivery volume maximum 1215 m³/h
- Static pressure maximum 676 Pa
- Product description
- Energy-saving fan with EC technology
- rotating terminal box
- Pre-assembled mounting plate
- complete BORA system
- WEEE no. 29933567
- If there are two fan modules in an exhaust air duct system, a minimum distance of 3 m should be maintained between these two fans
- The air flow direction is indicated by an arrow on the housing or when inserting the tube fan, the fan wheel must point in the direction of the hob extractor.
- For installation in a round pipe duct system with an average diameter of The two pipe reductions must be installed at 155 mm
- At least 500 mm straight exhaust air path must be provided before and after the fan
- The terminal box can be rotated to the desired position
- Fasteners must be provided on site
- Mounting plate is integrated
- Not suitable for installation in living areas, not installed in furniture
