For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

• Energy-saving fan with EC technology

• complete BORA system

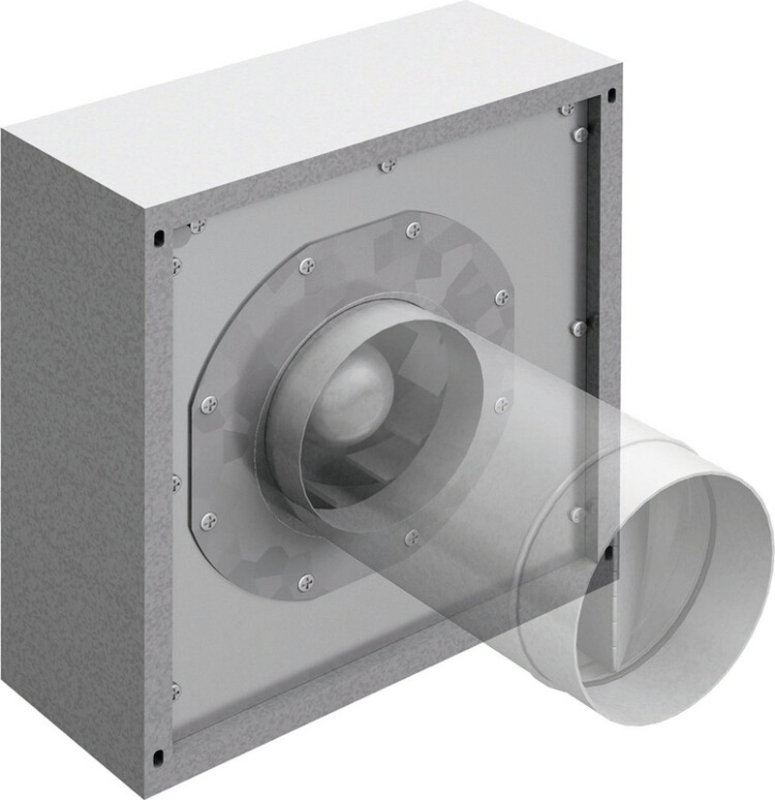

• 1 x outdoor wall fan ULA

• Telescopic installation pipe with integrated non-return valve

• Air deflector rail

• Assembly instructions

• Empty pipe Ø 40 mm x 400 mm for cable entry

• 1.25 m sealing tape EPDM

• 4 x folding ferrite

• Connection voltage 220 - 240 V

• Frequency 50 Hz

• Power consumption 149 W

• Current consumption 1.26 A

• Length of mains connection cable 10 m

• Length of control cable 10 m

• Dimensions (width x depth x height) 385 x 155 x 410 mm

• Weight (including accessories/packaging) 16.5 kg

• Housing material: galvanized steel / stainless steel
• Duct connection Ø 150 mm

• Maximum ambient temperature 70 °C

• Delivery volume maximum 940 m³/h

• Static pressure maximum 456 Pa

• WEEE no. 29933567

• If there are two fan modules in an exhaust air duct system, a minimum distance of 3 m should be maintained between these two fans

• There must be at least a downward distance of 40 cm for the outflow

• For installation on the outside of the building

• Suitable for wall thicknesses from 280 mm to 490 mm

• If necessary, a KG pipe Ø 200 mm should be pre-installed in the outer wall

• Air outlet downwards

• Fasteners must be provided on site

• Not suitable for blower door test

• The check valve axis must be aligned vertically
