For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking space and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

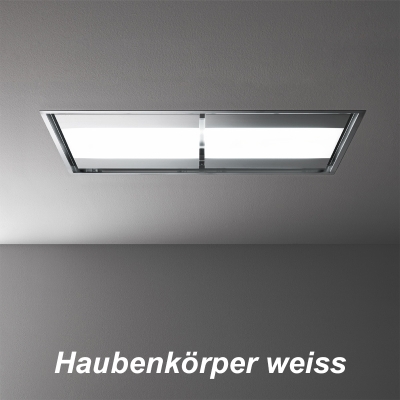

- Silverline ceiling hood with an attractive and timeless design, high reliability, excellent price-performance ratio and whisper-quiet operation.
- no lighting - suitable for implementing individual lighting concepts
- very low ceiling-dependent with a device height of 12.7 cm
- edge extraction
The rising vapor is sucked off at the outer edges of the hood body construction and directed to the grease filter behind it. Due to the high flow speed at the edge of the extractor hood, almost no cooking fumes can escape into the kitchen, even with lower motor settings. There are no turbulences, the drag effect is high and rebound effects play no role. The air does not flow into the kitchen, but directly into the extractor hood. The increase in efficiency resulting from edge extraction enables operation at lower power levels, with less energy consumption and lower noise.
Fan performance:
- according to the external motor used
Control:
- 2 normal levels / 2 Boost levels
- Electronics with 15 minute automatic overrun
- incl. remote control (FB 2) and installation kit
- automatic safety shutdown after 4 hours of operation
- can only be controlled via remote control!
Noise values:
- min./max. Normal operation 52/57 dB/A, Boost 1 59 dB(A) Boost 2 60 dB(A)
Exhaust air connection:
- Flat duct connection possible on 2 sides on the right/back
- by turning the ceiling hood by 180°, a flat duct connection on all 4 sides is possible
- Round connection (150 mm) possible at the top
Lighting:
- none
Connection value:
- see selected external motor
Grease filter:
- 3 x dishwasher-safe and 12-layer stainless steel metal grease filters
Operating mode:
- Exhaust air or recirculation air operation possible
- powerful recirculating air operation can also be carried out with the ZKM 800 and ZKM 1200
- Recirculating air starter set U-Start 811 required
- Exhaust air operation only with external motor
Special features:
- Distance from hob to ceiling hood max. 150 cm
- for installation in exhaust air with external motor Exhaust air path not less than 3.5 meters
* Notes:
