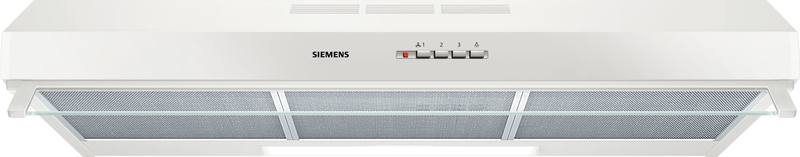

Siemens LU93LCC20, iQ300, under-counter hood, 90 cm, white, EEK: D
INCLUDING 5 YEARS WARRANTY * (for the countries Germany, Denmark, Czech Republic, Poland, Austria, France, Luxembourg, Belgium, Netherlands and Switzerland)
The base hood is attached under the upper cabinet or on the wall to save space.
- LED lighting: Illuminates the hob optimally and saves energy
- Extraction power 350 m³/h: fresh air when cooking.
Design
- For mounting under a wall cabinet or on the wall
Operating mode and performance
- Optional exhaust air or recirculation mode
- Noise min./max. Normal level: 56/72 dB
- Noise values according to EN 60704-3 and EN 60704-2-13 max. normal level for exhaust air operation: 72 dB(A) re 1 pW (58 dB(A) re 20 µPa sound pressure)
- Exhaust air performance according to EN 61591: max. 350 m³/h
- Total connected load: 146 W
Environment and safety
- Energy efficiency class: D (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 93.3 kWh/year*
- Fan efficiency class: E*
- Lighting efficiency class: E*
- Grease filter efficiency class: C*
Comfort
- Pushbutton switch
- 3 power levels
- Workplace lighting with 2 x LED 4W E14
- Illuminance: 45 lux
- Color temperature: 3000 K
- Metal grease filter, dishwasher safe
- 1 motor
- Exhaust air connection Ø 120 mm, 100 mm
Technical data
- Type: fan module/intermediate/substructure hood
- Length of connection cable: 145.0 cm
- Minimum distance to the electric hob: 650 mm
- Minimum distance to the gas hob: 650 mm
- Net weight: 7.5 kg
- Control: mechanical
- Number of power levels: 3
- Fan performance at the highest normal level for exhaust air: 350 m³/h
- Fan performance at the highest normal level circulating air: 110 m³/h
- Max. air volume: 350 m³/h
- Number of lamps (pcs): 2
- Noise: 72 dB(A) re 1pW
- Diameter of the exhaust air connection: 120 / 100 mm
- Grease filter material: washable aluminum
- EAN number: 4242003776445
- Connected load: 146 W
- Voltage: 220-240V
- Frequency: 50 Hz
- Plug type: Schuko/Gardy with grounding
- Device type: Undercounter device
* According to EU regulation No. 65/2014
