For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

• iQdrive motor: the quiet, powerful motor for efficient extraction of odors and vapors.

• Air quality sensor: Detects haze and odors and automatically adjusts the fan performance.

• LED lighting: Illuminates the hob optimally and saves energy
• Intensive level with automatic downshift: full power - but only as long as you need it.

• touchControl: Trigger power and LED lighting can be adjusted with just one touch.

Design

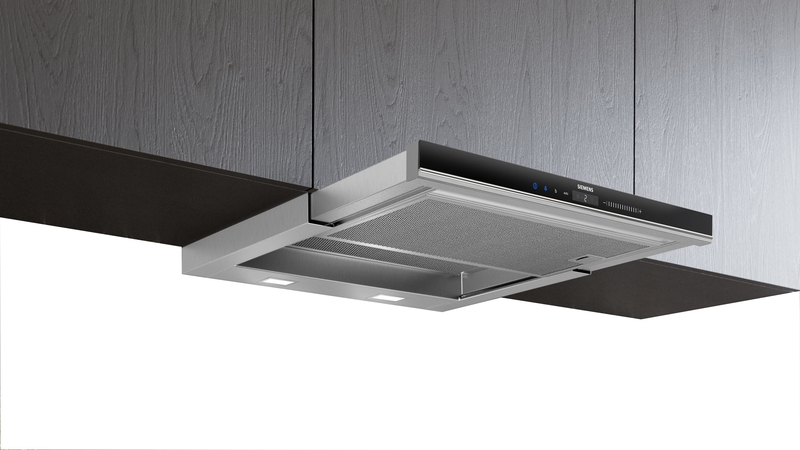

• 60 cm flat screen hood, stainless steel

• For special wall cabinets (60 cm wide)

• Optional exhaust air or recirculation mode

• For recirculation mode, a standard recirculation set or a Clean Air Plus recirculation set (special accessory) is required

Comfort

• touchControl operation with short-stroke buttons and filter change display

• Electronic control via touchControl operation with filter change display

• Electronic control

• touchControl operation (3 power levels + 2 intensive levels) with filter change display

• Electronic control via touchSlider operation with filter change display

• touchControl operation

• 3 performance levels + 2 intensive levels

• Intensive levels with automatic reset

• Automatic fan run-on

• Air sensor: allows the extractor hood to automatically regulate the power levels

Features

• Even, bright lighting with 2 x 1.5 W LED module

• Dimming function

• softLight

• Color temperature: 3500 K

• Illuminance: 294 lux

• Boost function

• Filter cover made of stainless steel, perforated and dishwasher safe
• Metal grease filter, dishwasher safe

• Saturation display for grease and odor filters

Operating mode and performance

• Fan performance according to EN 61591 for exhaust air operation:

• Max. normal level: 500m³/h

• Intensive level: 935 m³/h

• Noise values ​​according to EN 60704-2-13 for exhaust air operation:

• Max. normal level: 57dB(A) re 1 pW

• Intensive level: 71 dB(A) re 1 pW

• Noise values ​​according to EN 60704-2-13 max. normal level exhaust air mode: noise, highest normal level: 57 dB dB(A) re 1 pW

• Noise min./max. Normal level: 41/57 dB

• When using the separately available Clean Air recirculation set (special accessory), your device achieves the following values ​​in recirculation mode:

• Fan performance: Max. normal level: 500m³/h

• Intensive level: 811m³/h

• Noise values: Max. normal level: 63dB(A) re 1 pW

• Intensive level: 74 dB(A) re 1 pW

• 1 double-flow fan: iQdrive motor - quiet and powerful motor

• iQdrive motor - quiet and powerful motor

Planning and installation information

• Quick assembly fastening

• Device dimensions (HxWxD): 378 x 598 x 290 mm

• Installation dimensions (HxWxD): 337 x 524 x 290 mm

• Exhaust air connection Ø 150 mm (Ø 120 mm included)

• Delivery with backflow flap

• Length of connection cable: 1.75 m with plug

• touchSlider operation

Environment and safety

• Energy efficiency class: A (on an energy efficiency class scale from A+++ to D)

• Average energy consumption: 41 kWh/year*

• Fan efficiency class: A*

• Lighting efficiency class: A*

• Grease filter efficiency class: B*

• Total connected load: 264 W

* According to EU regulation No. 65/2014
