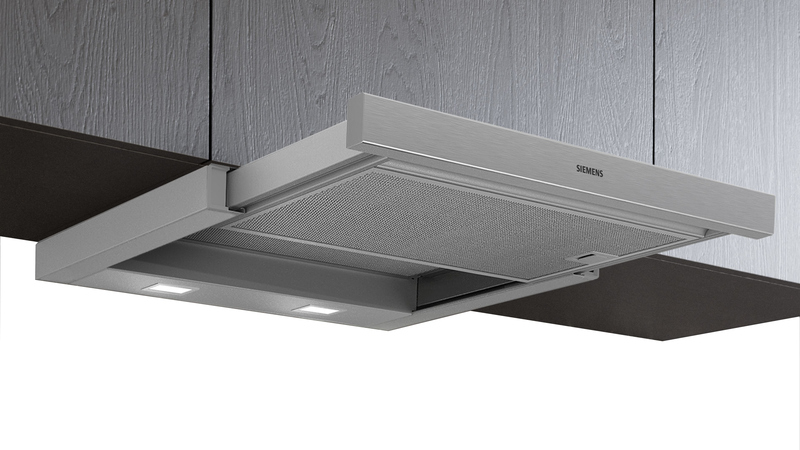

Siemens LI63LB526, iQ100, flat screen hood, 60 cm, silver metallic, EEK: C, with 5 year guarantee!
INCLUDING 5 YEARS WARRANTY * (for the countries Germany, Denmark, Czech Republic, Poland, Austria, France, Luxembourg, Belgium, Netherlands and Switzerland)
The powerful flat screen hood for almost invisible placement in the upper cabinet.
- LED lighting: Illuminates the hob optimally and saves energy
- Extended availability of spare parts: for the longevity of your household appliances.
- Additional handle strips: choose one of the Siemens handle strips (available as special accessories) to customize your hood.
Design
- Flat screen hood, silver metallic
- For installation in a 60 cm wide special wall cabinet.
- Optional exhaust air or recirculation mode
Most important features:
- Capacitor motor
- Even, bright lighting with 2 x 1.5 W LED module
- Color temperature: 3500 K, illuminance: 131 lux
- 2 metal grease filters, dishwasher-safe
- rocker switch operation
- 2 power levels
exhaust air performance:
- According to EN 61591 and EN/IEC 60704-2-13, the device achieves the following values in exhaust air mode:
- performance level 1: fan performance: 276 m3/h; Noise value: 61 dB(A) re1pW
- Performance level 2: Fan performance: 351 m3/h ; Noise value: 65 dB (A) re1pW
- Average energy consumption: 43.5 kWh/year*
- Fan efficiency class: D*
- Lighting efficiency class: A*
- Grease filter efficiency class: C*
Recirculation air performance:
- A standard recirculation set (special accessory) is required for recirculation operation
- According to EN 61591 and EN/IEC 60704-2-13, the device achieves the following values in recirculation mode with the Clean Air Standard recirculation set (available as a special accessory):
- Performance level 1: Fan performance: 190 m3/h; Noise value: 66 dB(A) re1pW
- Performance level 2: Fan performance: 220 m3/h; Noise value: 69 dB (A) re1pW)
Planning information
- Device dimensions (HxWxD): 203 x 598 x 290 mm
- Installation dimensions (HxWxD): 162 x 526 x 290 mm
- Pipe diameter: Ø 150 mm
- Length of connection cable: 1.75 m with plug
- Without handle strip (available as an optional accessory)
Technical data and sustainability:
- Total connected load: 93 W
- Voltage: 220 - 240 V
- Fan efficiency class: D*
- Made in Germany: manufactured in a CO2-neutral production facility
Technical data
- Design: flat screen hood
- Length of connection cable: 175.0 cm
- Niche dimensions for installation (H x W x D): 162 mm x 526.0 mm x 290 mm
- Device height: 203 mm
- Minimum distance to the electric hob: 430 mm
- Minimum distance to the gas hob: 650 mm
- Net weight: 8.4 kg
- Control: mechanical
- Number of power levels: 2
- Fan performance at the highest normal level for exhaust air: 351 m³/h
- Fan performance at the highest normal level circulating air: 220 m³/h
- Max. air volume: 351 m³/h
- Number of lamps (pcs): 2
- Noise: 65 dB(A) re 1pW
- Diameter of the exhaust air connection: 150 mm
- Grease filter material: washable aluminum
- EAN number: 4242003979143
- Connection value: 93 W
- Fuse: 10 A
- Voltage: 220-240V
- Frequency: 50 Hz
- Plug type: Schuko/Gardy with grounding
- Device type: Integrable
* According to EU regulation No. 65/2014
