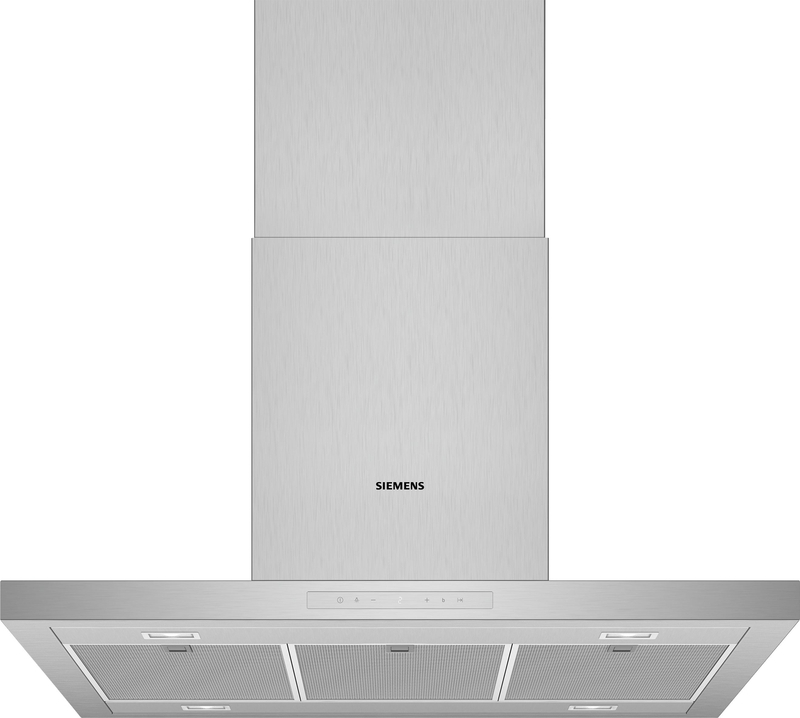

Siemens LF97BCP50, iQ500, island hood, 90 cm, stainless steel, EEK: A
INCLUDING 5 YEARS WARRANTY * (for the countries Germany, Denmark, Czech Republic, Poland, Austria, France, Luxembourg, Belgium, Netherlands and Switzerland)
The powerful island stand impresses with its high suction performance and outstanding design
- iQdrive motor: the quiet, powerful motor for efficient extraction of odors and vapors.
- LED lighting: Illuminates the hob optimally and saves energy
- Intensive level with automatic downshift: full power - but only as long as you need it.
- touchControl: Trigger power and LED lighting can be adjusted with just one touch.
Design
- 90 cm
- Inselesse stainless steel
Operating mode and performance
- Optional exhaust air or recirculation mode, for recirculation mode
- a standard recirculation set or cleanAir Plus recirculation set (special accessory) is required
- Max. delivery rate: 727 m3/h
- Fan performance in exhaust air mode according to EN 61591: max. normal level 444 m³/h, intensive level 727 m³/h
- Recirculation air output3: max. normal operation 343 m³/h, intensive level 442 m³/h
Design
- Cassette with aluminum frame
- softLight with dimming function
- Workplace lighting with 4 x 1.5 W LED module
- Illuminance: 409 Lux
- Color temperature: 3500 K
Comfort
- Metal grease filter, dishwasher safe
- Saturation display for grease and odor filters
- touchControl operation (3 power levels + 2 intensive levels) with filter change display
- Intensive levels with automatic reset
- Automatic fan run-on
- Boost function
- Cleanable inner frame
Environment and safety
- Energy efficiency class: A* (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 31.9 kWh/year*
- Fan efficiency class: A*
- Grease filter efficiency class: B*
- Lighting efficiency class: A*
- Noise min./max. Normal level: 45/54 dB
- Noise values according to EN 60704-2-13 for exhaust air operation:
- max. normal level: 54 dB(A) re 1 pW,
- Intensive level: 65 dB(A) re 1 pW
- Noise values in recirculation mode:
- max. normal level: 66 dB(A) re 1 pW,
- Intensive level: 70 dB(A) re 1 pW
- Extremely quiet operation thanks to special noise insulation
Technical information
- For ceiling installation above kitchen islands
- Exhaust air connection Ø 150 mm (Ø 120 mm included)
- With backflow flap
- Energy-saving operation with iQdrive motor technology
- Connected load: 146 W
- Device dimensions, exhaust air: 744 – 924 x 898 x 600 mm
- Device dimensions for circulating air: 744 –1044 x 898 x 600 mm
- Device dimensions for recirculating air with cleanAir Plus recirculating air set: 812 – 1044 x 898 x 600 mm
Technical data
- Design: Island dining/ceiling fan
- Length of connection cable: 130.0 cm
- Chimney height: 698-878/698-998 mm
- Device height: 46 mm
- Minimum distance to the electric hob: 550 mm
- Minimum distance to the gas hob: 650 mm
- Net weight: 28.2 kg
- Control: electronic
- Number of performance levels: 3 levels + 2 intensive
- Fan performance at the highest normal level for exhaust air: 444 m³/h
- Fan performance at intensive circulating air level: 442 m³/h
- Fan performance at the highest normal level circulating air: 343 m³/h
- Fan performance at intensive exhaust level: 727 m³/h
- Max. air volume: 444 m³/h
- Number of lamps (pcs): 4
- Noise: 54 dB(A) re 1pW
- Diameter of the exhaust air connection: 120 / 150 mm
- Grease filter material: washable aluminum
- EAN number: 4242003832097
- Connected load: 146 W
- Fuse: 10 A
- Voltage: 220-240V
- Frequency: 50; 60Hz
- Plug type: Schuko/Gardy with grounding
- Device type: Island
* According to EU regulation No. 65/2014
