For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

Design

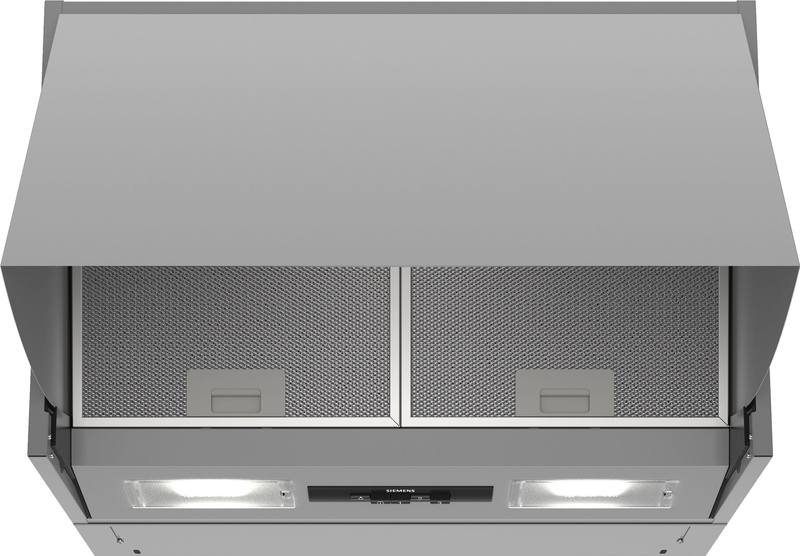

• 60 cm intermediate hood, silver

• Choice of exhaust air or recirculation mode

Comfort

• Metal grease filter, dishwasher safe

• Pushbutton switch

• 3 power levels
• Workplace lighting with 2 x LED 3W E14

• Illuminance: 188 lux

• Color temperature: 2700 K

Environment and safety

• Energy efficiency class: D (on an energy efficiency class scale from A+++ to D)

• Average energy consumption: 65.7 kWh/year*

• Fan efficiency class: E*

• Lighting efficiency class: A*

• Grease filter efficiency class: C*

• Noise min./max. Normal level: 52/62 dB
• For mounting between wall cabinets
• Exhaust air connection Ø 150 mm, 120 mm

• Total connected load: 126 W

Technical data

• Type: fan module/intermediate/substructure hood

• Length of connection cable: 150.0 cm

• Device height: 402 mm

• Minimum distance to the electric hob: 500 mm

• Minimum distance to the gas hob: 650 mm

• Net weight: 10.3 kg

• Control: mechanical

• Number of power levels: 3

• Fan performance at the highest normal level for exhaust air: 368 m³/h

• Fan performance at the highest normal level circulating air: 272 m³/h

• Max. air volume: 368 m³/h

• Number of lamps (pcs): 2

• Noise: 62 dB(A) re 1pW

• Diameter of the exhaust air connection: 150 / 120 mm

• Grease filter material: washable aluminum
• EAN number: 4242003806470

• Connected load: 126 W

• Fuse: 10 A

• Voltage: 220-240V

• Frequency: 50; 60Hz

• Plug type: Schuko/Gardy with grounding

• Device type: Wall mounting

* According to EU regulation No. 65/2014
