For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

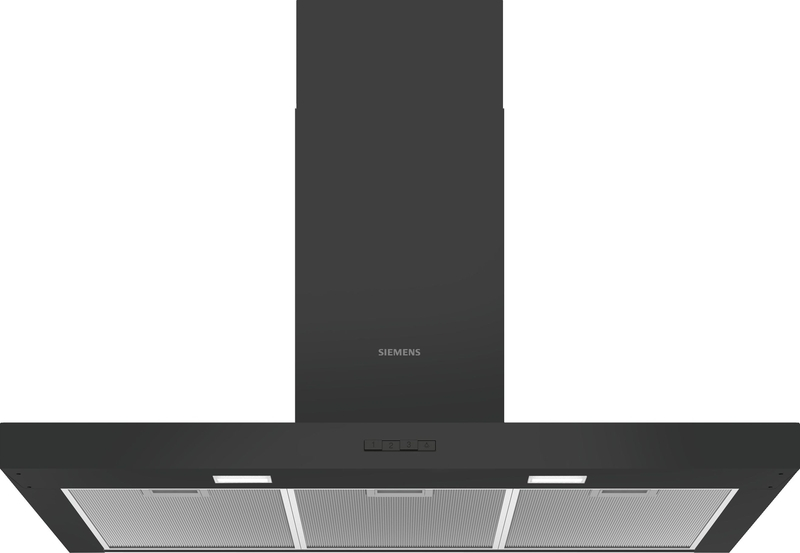

Siemens LC96BBC60, iQ100, wall panel, 90 cm, black, EEK: B
INCLUDING 5 YEARS WARRANTY * (for the countries Germany, Denmark, Czech Republic, Poland, Austria, France, Luxembourg, Belgium, Netherlands and Switzerland)
Extractor hood in box design with high suction power for powerful performance.
- LED lighting: Illuminates the hob optimally and energy-saving
Design
- 90 cm
- Wall Esse
Operating mode and performance
- Optional exhaust air or recirculation mode
- A standard recirculation set or a Clean Air Plus recirculation set (special accessory) is required for recirculation operation
- Max. fan performance 619 m³/h in exhaust mode according to EN 61591
- Noise values according to EN 60704-2-13 max. normal level exhaust air mode: noise, highest normal level: 70 dB dB(A) re 1 pW
- When using the separately available Clean Air Plus recirculation set (special accessory), your device achieves the following values in recirculation mode:
- Recirculation level: Max. normal operation: 422m³/h
- Noise values for circulating air: Max. normal level: 74 dB(A) re 1 pW
Comfort
- Pushbutton switch
- Extractor hoods for 3 power levels
- Double-flow high-performance blower
- Capacitor motor
- Even, bright lighting with 2 x 1.5 W LED module
- Illuminance: 91 lux
- Color temperature: 3500 K
- Metal grease filter, dishwasher safe
Environment and safety
- Energy efficiency class: B (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 47.4 kWh/year*
- Fan efficiency class: A*
- Lighting efficiency class: A*
- Grease filter efficiency class: B*
- Noise min./max. Normal level: 49/70 dB
Technical information
- Device dimensions, exhaust air (HxWxD): 635-965 x 900 x 500 mm
- Device dimensions for circulating air (HxWxD): 635-1075 x 900 x 500 mm
- Device dimensions recirculation air with Clean Air Plus recirculation set (HxWxD):
- 703 x 900 x 500mm - mounting on external channel
- 833-1163 x 900 x 500 mm - mounting on inner channel
- Exhaust air connection Ø 150 mm (Ø 120 mm included)
- Delivery with backflow flap
- 90 cm wall dining table, black
- Total connected load: 220 W
- Length of connection cable: 1.3 m with plug
Technical data
- Type: wall mounting
- Length of connection cable: 130.0 cm
- Chimney height: 583-912/583-1022 mm
- Device height: 53 mm
- Minimum distance to the electric hob: 550 mm
- Minimum distance to the gas hob: 650 mm
- Net weight: 13.6 kg
- Control: mechanical
- Number of power levels: 3
- Fan performance at the highest normal level for exhaust air: 619 m³/h
- Fan performance at the highest normal level circulating air: 422 m³/h
- Max. air volume: 619 m³/h
- Number of lamps (pcs): 2
- Noise: 70 dB(A) re 1pW
- Diameter of the exhaust air connection: 120 / 150 mm
- Grease filter material: washable aluminum
- EAN number: 4242003925126
- Connected load: 220 W
- Fuse: 10 A
- Voltage: 220-240V
- Frequency: 50; 60Hz
- Plug type: Schuko/Gardy with grounding
- Device type: Wall mounting
* According to EU regulation No. 65/2014
