For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

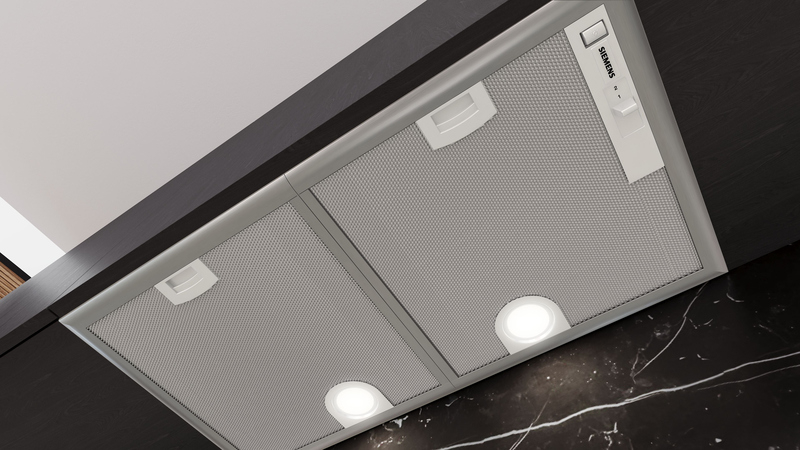

Siemens LB75566, iQ300, fan module, 53 cm, silver metallic, EEC: D
INCLUDING 5 YEAR WARRANTY * (for the countries Germany, Denmark, Czech Republic, Poland, Austria, France, Luxembourg, Belgium, Netherlands and Switzerland)
The fan module offers design freedom - for mounting on the wall or above a kitchen island.
- LED lighting: Illuminates the hob optimally and saves energy
- Extended availability of spare parts: for the longevity of your household appliances.
Design
- For prepared cupboards, food, etc. as well as kitchen islands
- Optional exhaust air or recirculation mode
- Capacitor motor
- Workplace lighting with 2 x 2.15 W LED module
- Color temperature: 3500 K
- Illuminance: 410 lux
- 2 metal grease filters, dishwasher safe
- Slide switch
- 3 power levels and 1 intensive level
Exhaust air performance
- According to EN 61591 and EN/IEC 60704-2-13, the device can achieve the following values in exhaust air mode:
- Performance level 1: Fan performance 229 m3/h; Noise value 46 dB(A) re1pW
- Performance level 2: Fan performance 371 m3/h; Noise value 57 dB (A) re1pW
- Performance level 3: Fan performance 468 m3/h; Noise value 63 dB (A) re1pW
- Intensive level 1: fan performance 614 m3/h; Noise value 68 dB (A) re1pW
- Energy efficiency class: D (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 88.1 kWh/year*
- Fan efficiency class: D*
- Lighting efficiency class: A*
- Grease filter efficiency class: B*
Recirculation air performance:
- A standard activated carbon filter is required for recirculation mode (special accessory)
- According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values in recirculation mode with the standard recirculation set (available as an optional accessory):
- Performance level 1: Fan performance 140 m3/h; Noise value 56 dB(A) re1pW
- Performance level 2: Fan performance 231 m3/h; Noise value 67 dB(A) re1pW
- Performance level 3: Fan performance 281 m3/h ; Noise value 70 dB(A) re1pW
- Intensive level 1: fan performance 324 m3/h; Noise value 73 dB (A) re1pW
Environment and safety
- Total connected load: 206 W
- Voltage: 220 - 240 V
- Made in Germany: manufactured in a CO2-neutral production facility
Technical information
- Device dimensions (HxWxD): 215 x 730 x 380 mm
- Installation dimensions (HxWxD): 215 x 700 x 350 mm
- Total connected load: 206 W
- Length of connection cable: 1.3 m with plug
- Exhaust air connection Ø 150 mm
Technical data
- Type: fan module/intermediate/substructure hood
- Length of connection cable: 130.0 cm
- Niche dimensions for installation (H x W x D): 215mm x 700.0mm x 350mm
- Device height: 215 mm
- Minimum distance to the electric hob: 650 mm
- Minimum distance to the gas hob: 650 mm
- Net weight: 8.2 kg
- Control: mechanical
- Number of power levels: 3 fan levels and 1 intensive level
- Fan performance at the highest normal level for exhaust air: 468 m³/h
- Fan performance at intensive circulating air level: 324.0 m³/h
- Fan performance at the highest normal level circulating air: 281 m³/h
- Fan performance at intensive exhaust air level: 614 m³/h
- Max. air volume: 468 m³/h
- Number of lamps (pcs): 2
- Noise: 63 dB(A) re 1pW
- Diameter of the exhaust air connection: 150 mm
- EAN number: 4242003979280
- Connected load: 206 W
- Fuse: 10 A
- Voltage: 220-240V
- Frequency: 50 Hz
- Plug type: Schuko/Gardy with grounding
- Device type: Integrable
* According to EU regulation No. 65/2014
