For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

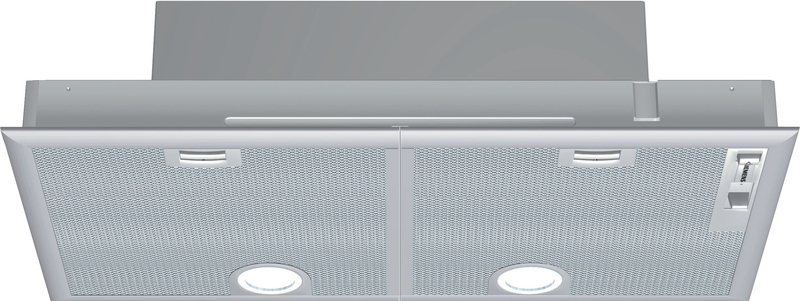

Siemens LB75565, iQ300, fan module, 75 cm, silver metallic, EEK: C
INCLUDING 5 YEARS WARRANTY * (for the countries Germany, Denmark, Czech Republic, Poland, Austria, France, Luxembourg, Belgium, Netherlands and Switzerland)
The powerful fan module for invisible placement above the cooking area.
- LED lighting: Illuminates the hob optimally and saves energy
Design
- For prepared cupboards, food, etc. as well as kitchen islands
- 2 high-performance blowers
- Delivery with backflow flap
- Slide switch
- Workplace lighting with 2 x LED spots 2.15W (low voltage)
- Illuminance: 410 lux
- Color temperature: 3500 K
- Metal grease filter, dishwasher safe
Operating mode and performance
- 3 performance levels and 1 intensive level
- Optional exhaust air or recirculation mode
- A standard activated carbon filter is required for recirculation mode (special accessory)
- Exhaust air performance according to EN 61591:
- max. normal operation379m³/h
- Intensive level 638 m³/h
- Max. delivery rate: 638 m3/h
- Noise values according to EN 60704-2-13 for exhaust air operation:
- Max. normal level: 56dB(A) re 1 pW
- Intensive level: 68 dB(A) re 1 pW
Environment and safety
- Average energy consumption: 81.2 kWh/year*
- Energy efficiency class: C (on an energy efficiency class scale from A+++ to D)
- Fan efficiency class: D*
- Lighting efficiency class: A*
- Grease filter efficiency class: B*
- Noise min./max. Normal level: 38/56 dB
Technical information
- Device dimensions (HxWxD): 255 x 730 x 380 mm
- Installation dimensions (HxWxD): 255 x 700 x 350 mm
- Total connected load: 206 W
- Exhaust air connection Ø 150 mm, 120 mm
Technical data
- Type: fan module/intermediate/substructure hood
- Length of connection cable: 130.0 cm
- Niche dimensions for installation (H x W x D): 255mm x 700.0mm x 350mm
- Device height: 255 mm
- Minimum distance to the electric hob: 650 mm
- Minimum distance to the gas hob: 650 mm
- Net weight: 8.2 kg
- Control: mechanical
- Number of power levels: 3 fan levels and 1 intensive level
- Fan performance at the highest normal level for exhaust air: 379 m³/h
- Fan performance at intensive circulating air level: 408.0 m³/h
- Fan performance at the highest normal level circulating air: 278 m³/h
- Fan performance at intensive exhaust level: 638 m³/h
- Max. air volume: 379 m³/h
- Number of lamps (pcs): 2
- Noise: 56 dB(A) re 1pW
- Diameter of the exhaust air connection: 120 / 150 mm
- Grease filter material: washable aluminum
- EAN number: 4242003838402
- Connection value: 206 W
- Fuse: 10 A
- Voltage: 220-240V
- Frequency: 50 Hz
- Plug type: Schuko/Gardy with grounding
- Device type: Integrable
* According to EU regulation No. 65/2014
