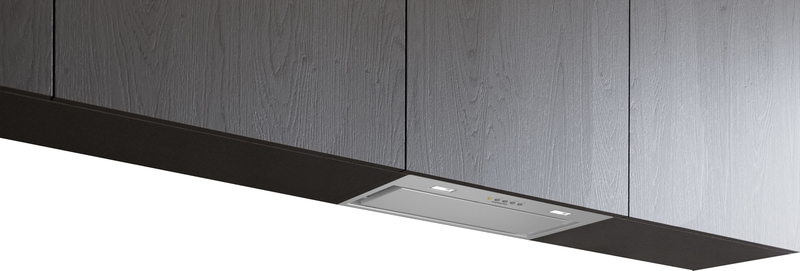

Siemens LB56NAC50, iQ500, fan module, 52 cm, stainless steel, EEK: B
INCLUDING 5 YEARS WARRANTY * (for the countries Germany, Denmark, Czech Republic, Poland, Austria, France, Luxembourg, Belgium, Netherlands and Switzerland)
The powerful fan module can be seamlessly integrated into the wall cabinet or a brick fireplace.
- Intensive level with automatic downshift: full power - but only as long as you need it.
- Seamlessly integrated: thanks to the flush installation design, the fan module disappears almost invisibly in the wall cabinet.
- Push-button operation: stress-free cooking thanks to easy operation.
- LED lighting: Illuminates the hob optimally and saves energy
- cleanAir Plus odor filter: filters almost all kitchen odors and pollen from the air.
Design
- Fan module stainless steel
- For mounting in a kitchen cupboard
- Flush installation for seamless integration into wall cabinets.
- Optional exhaust air or recirculation mode
- For operation in recirculated air, various recirculation sets are available and necessary as optional accessories.
Most important features
- Workplace lighting with 2 x LED spots 1W
- Color temperature: 4000 K
- Illuminance: 400 lux
- Capacitor motor
- 1 metal grease filter
- Electronic control with short-stroke buttons and LED display
- 3 performance levels and 1 intensive level
- Automatic reset from intensive to normal level after 6 minutes
Cleaning
- Metal grease filter, dishwasher safe
- The surfaces and materials are smooth and easy to clean.
Output exhaust air
- According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values in exhaust mode:
- Performance level 1: Fan performance: 295 m3/h; Noise value 50 dB(A) re1pW
- Performance level 2: Fan performance: 445 m3/h; Noise value 59 dB (A) re1pW
- Performance level 3: Fan performance: 570 m3/h; Noise value 66 dB (A) re1pW
- Intensive level 1: Fan performance: 645 m3/h; Noise value 68 dB (A) re1pW
- Energy efficiency class: B (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 75.2 kWh/year*
- Fan efficiency class: C*
- Lighting efficiency class: A*
- Grease filter efficiency class: D*
Recirculation air performance
- According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values in recirculation mode with the standard recirculation set (available as an optional accessory):
- Performance level 1: Fan performance 230 m3/h; Noise value 62 dB(A) re1pW
- Performance level 2: Fan performance 330 m3/h; Noise value 69 dB(A) re1pW
- Performance level 3: Fan performance 400 m3/h ; Noise value 72 dB(A) re1pW
- Intensive level 1: fan performance 410 m3/h; Noise value 74 dB (A) re1pW
- According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values in recirculation mode with the Clean Air plus recirculation set for chimney-free installation:
- Performance level 1: Fan performance: 280 m3/h; Noise value: 56 dB(A) re1pW
- Performance level 2: Fan performance: 430 m3/h; Noise value: 69 dB(A) re1pW
- Performance level 3: Fan performance: 560 m3/h; Noise value: 69 dB(A) re1pW
- Intensive level 1: Fan performance: 628 m3/h; Noise value: 72 dB (A) re1pW
Technical information
- Total connected load: 252 W
- Voltage: 220 - 240 V
- Sustainability: Environmentally friendly packaging
- Available odor filter as a regenerable long life filter with a service life of 10 years
- Device dimensions (HxWxD): 345 x 520 x 282 mm
- Device dimensions for circulating air (HxWxD): 345-345 x 520 x 282 mm
- Installation dimensions (HxWxD): 345 x 496 x 264 mm
- Observe dimensions and installation instructions for this device according to the technical drawing
- Length of connection cable: 1.5 m with plug
- Exhaust air connection Ø 150 mm
Technical data
- Type: fan module/intermediate/substructure hood
- Length of connection cable: 150.0 cm
- Min. niche dimensions for installation (H x W x D): 345mm x 496.0mm x 264mm
- Device height: 345 mm
- Minimum distance to the electric hob: 500 mm
- Minimum distance to the gas hob: 650 mm
- Net weight: 10.1 kg
- Control: electronic
- Number of power levels: 3 fan levels and 1 intensive level
- Fan performance at the highest normal level for exhaust air: 570 m³/h
- Fan performance at intensive circulating air level: 628 m³/h
- Fan performance at the highest normal level circulating air: 560 m³/h
- Fan performance at intensive exhaust air level: 645 m³/h
- Max. air volume: 570 m³/h
- Number of lamps (pcs): 2
- Noise: 66 dB(A) re 1pW
- Diameter of the exhaust air connection: 150 mm
- Grease filter material: washable aluminum
- EAN number: 4242003959770
- Connected load: 252 W
- Fuse: 3 A
- Voltage: 220-240V
- Frequency: 60; 50Hz
- Plug type: Schuko/Gardy with grounding
- Device type: Integrable
* According to EU regulation No. 65/2014
