For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

• Touch Control: operate your hob with a simple touch.

• Combination zone: several cooking zones combine for use with larger pots and pans.

• Reduced noise development: the ventilation system is extremely quiet even at high performance levels.

• Suction performance: extremely efficient steam and odor removal thanks to efficient motor technology.

• Easy to clean grease filters: can be easily removed and is dishwasher safe.

Extractor hood equipment

• Cooking area with integrated extractor hood

• Optional exhaust air or recirculation mode (special accessories are required in each case)

• An exhaust air module (special accessory Z8100X1) is required for exhaust air operation

• A cleanAir recirculation module (special accessory Z8200X1) is required for recirculation mode

• 9 performance levels and 1 intensive level

• Automatic switching on of the ventilation system when using a cooking zone

• Fan run-on 30 minutes

• Blower technology with high-efficiency, low-noise, brushless direct current (BLDC) motor. Flow-optimized air flow in the interior.

• Large, 12-layer stainless steel grease filters for high grease filtering efficiency (90%)
• Air inlet grille made of plastic (dishwasher safe)

• Removable and separable grease filter & overflow protection unit, dishwasher-safe - with integrated stainless steel grease filters, dishwasher-safe - condensate and overflow protection container, approx. 200ml capacity, dishwasher-safe

• Safety overflow tank (dishwasher safe) with approx. 2,000ml capacity and twist-off closure for easy removal
• Saturation display for stainless steel grease filters

• Saturation display for CleanAir odor filter

Performance data for extractor hood

• Air performance data according to EN 61591

• Sound power level according to EN 60704-3

• Sound pressure level according to EN 60704-2-13

• Odor reduction in recirculating air mode according to EN 63591

• Exhaust air performance:

• - min. normal level 160 m3/h

• - max. normal level 519 m3/h

• - Boost/Intensive level 667 m3/h

• Recirculation air performance:

• - min. normal level 141 m3/h

• - max. normal level 565 m3/h

• - Boost/Intensive level 612 m3/h

• Noise values ​​for exhaust air operation:

• - min. normal level 42 dB(A) re 1 pW (31db(A) re 20 µPa sound pressure)

• - max. normal level70 dB(A) re 1 pW (59dB(A) re 20 µPa sound pressure)

• - Boost/Intensive level 75 dB(A) re 1 pW (64 dB(A) re 20 µPa sound pressure)

• Noise values ​​in recirculation mode:

• - min. normal level 42 dB(A) re 1 pW (31dB(A) re 20 µPa sound pressure)

• - max. normal level73 dB(A) re 1 pW (62dB(A) re 20 µPa sound pressure)

• - Boost/Intensive level 75 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)

• Grease filter efficiency: 90%

• Odor reduction in recirculation mode: 87%

Consumption data for extractor hood

• Energy efficiency class: A (on an energy efficiency class scale from A++ to E)

• Average energy consumption: 50.3 kWh kWh/year

• Fan efficiency class: A

• Grease filter efficiency class: B

• Noise min./max. Normal level: 42/70 dB

Installation instructions

• Base cabinet width: min. 80 cm.

• Worktop depth: min. 58.5 cm (with shortened drawers), full drawer depth can be used from 70 cm.

• Immersion depth: 20.4 cm

• Exhaust or recirculating air piping system can be ordered as a special accessory.

• Total device weight: 19

• The device must be freely accessible from below.

• When installing an air duct in exhaust mode and a fireplace connected to a fireplace, the power supply must be equipped with a suitable safety switch.

• The load-bearing capacity and stability, especially with thin worktops, must be ensured by suitable substructures. The weight of the device must be taken into account here.

• Exhaust air connection: flat duct NW 150

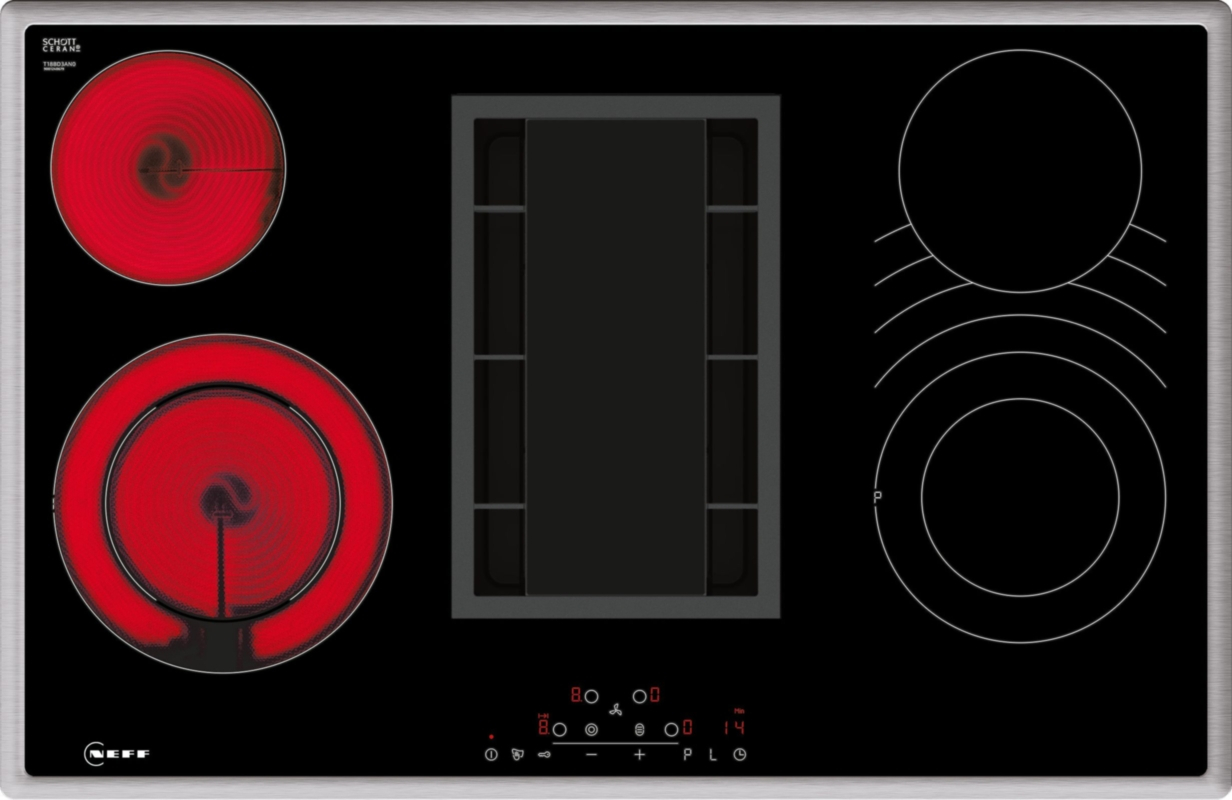

Flexibility of the cooking zones

• Combination zone: When using larger cookware, two cooking zones are connected to form a larger one.

• 80 cm: Space for 4 pots or pans

• Front left cooking zone: 145 mm, 210 mm, 1.2 kW (maximum power 3 kW)

• Rear left cooking zone: 145 mm, 1.2 kW

• Rear right cooking zone: 145 mm, 1.2 kW

• Front right cooking zone: 120 mm, 180 mm, 270 mm, 370 mm, 4.6 kW (maximum power 2.3 kW)

Ease of use

• Touch Control: Control the power with the printed +/- touch buttons.

• 17 power levels: Adjust the heat precisely with 17 power levels (9 main levels and 8 intermediate levels).

• Keep warm function for all cooking zones: Keep warm

  The food warming function keeps dishes warm and maintains the required temperature of food without overcooking it.


  This way, the aroma and texture are preserved and the food not only always tastes like it was freshly cooked, but is also ready to be served straight away.

  of food at a preset low power level.

• Switch-off timer: Switches off the cooking zone at the end of the set time (e.g. for boiled eggs).

• Alarm clock: At the end of the set time, a signal sounds (e.g. when cooking pasta).

Time savings and efficiency

• Power level: Power level, front left - brings water to the boil faster than at the highest normal level thanks to 20% more energy input.

• Restart function: If the hob is switched off unintentionally, all settings will be retained if you switch it on again within 4 seconds.

Design

• Frame in stainless steel

Safety

• 2-stage residual heat display for each cooking zone: Shows which cooking zones are still hot or warm.

• Child safety lock: Prevents the hob from being activated unintentionally.

• Wipe protection function: Wipe over boiled liquids without unintentionally changing the settings (all touch buttons are blocked for 30 seconds).

• Main switch: Switch off all cooking zones at once.

• Operating indicator lamp: Shows whether the hob is heating.

• Automatic safety switch-off: For safety reasons, the hob switches off automatically after a preset time without interaction.

• Energy consumption display: Shows the power consumption of the last cooking process.

Installation

• Dimensions of the device (HxWxD mm): 204 x 795 x 517

• Required niche size (HxWxD mm): 204 x 780 x (500 - 500)

• Minimum worktop thickness: 16 mm

• Total connected load: 8000 W

• Power cable: 130 cm, connected to connection strip
