For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking space and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

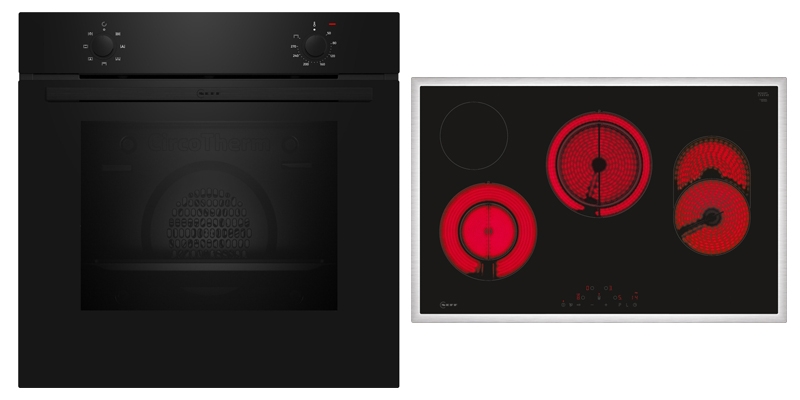

Neff BX18B, SET built-in oven B1DCA0AK0 and glass ceramic hob T18SDH9L0
INCLUDING 5 YEAR WARRANTY * (for the countries Germany, Denmark , Czech Republic, Poland, Austria, France, Luxembourg, Belgium, Netherlands and Switzerland)
Description of the built-in oven
- CircoTherm CircoTherm® hot air system: Unique all-round heat in which the hot air is directed specifically around the food at high speed. Menu cooking is possible on up to three levels at the same time.® – unique hot air system that allows you to bake on up to three levels at the same time.
Oven type and heating type
- Oven with 5 heating types
- Circo Therm®
- Top/bottom heat
- Thermal grill On electric stoves and ovens, the CircoTherm® fan and the continuously adjustable grill switch on alternately. The all-round heat flow moves around the entire surface of the food.
- Large area grill
- Circo Therm® gentle
- Electronic temperature control from 50 °C - 275 °C
- Cooking chamber volume: 71 l
Design
- Rotary selector, round
- Cooking chamber: anthracite enamel
Cleaning
- Full glass inner door
Comfort
- Optical heating control
- Autostart
- Profile handle
- Rapid heating
- Halogen lamp
- Cooling fan
- Stainless steel fan wheel
Accessory rack/extension system:
- 4 insertion levels
- Extract can be retrofitted
Accessories included
- 1 x combination grate
- 1 x universal pan
Environment and safety
- Low window temperature
- Triple door glazing
Technical information:
- Length of the connection cable: 120 cm
- Nominal voltage: 220 - 240 V
- Total electrical connection value: 3.4 kW
- Energy efficiency class (according to EU No. 65/2014): A (on an energy efficiency class scale from A+++ to D)
- Energy consumption per cycle in conventional mode: 0.97 kWh
- Energy consumption per cycle in recirculation mode: 0.81 kWh
- Number of cooking chambers: 1
- Heat source: electric
- Interior volume : 71 l
- Device dimensions (HxWxD): 595 x 594 x 548 mm
- Niche dimensions (HxWxD): 595 mm x 560 mm x 550 mm
- “Observe the dimensions and installation instructions for this device in accordance with the technical drawing”
- We recommend that you To choose complementary products within the N30 product series to ensure the best possible installation situation for your built-in devices.
Description of glass ceramic hob
- Touch Control – operate your hob with a simple touch.
- Power level – the heat extra for quick results.
- roasting zone : Extra switchable cooking zone for large roasting dishes such as roasters
Flexibility of the cooking zones
- 80 cm: space for 4 pots or pans
- roasting zone: extra switchable cooking zone for large roasting dishes
- Dual-circuit cooking zone: Use normal or larger cookware for the expandable cooking zone.
- Front left cooking zone: 120 mm, 210 mm, 0.8 kW (maximum power 2.6 kW)
- Rear left cooking zone: 145 mm, 1.2 kW
- Rear cooking zone: 180 mm, 230 mm, 1.7 kW (max. power 3.4 kW)
- Front right cooking zone: 170 mm, 265 mm, 1.8 kW
Comfort
- Touch Control: Control the power with the printed +/- touch buttons.
- 17 power levels
- Keep warm function for all cooking zones
- Switch Off Timer
- Countdown timer: A signal sounds at the end of the set time (e.g. when cooking pasta).
Time savings and efficiency
- Power level: Front left, rear middle - Brings water to the boil faster than at the highest normal level, thanks to 20% more energy supply.
- Restart function
- Quick shutdown
Design
- top-mounted stainless steel frame
Safety
- 2-stage residual heat display for each cooking zone
- Parental Controls
- Wipe protection function
- Power indicator lamp
- Automatic safety shutdown
- Energy consumption display
Installation
- Dimensions of the device (HxWxD mm): 48 x 795 x 517
- Required niche size (HxWxD mm): 48 x 780 x (500 -500)
- Minimum worktop thickness: 16 mm
- Total connected load: 9300 W
- Power cable: 100 cm
- Connection cable enclosed in packaging
Technical data
- Product name/family: Glass ceramic hob
- Design: built-in
- Energy source: Electric
- Number of cooking zones: 5
- Min niche dimensions for installation (H x W x D): 48 x 780 x 500-500 mm
- Device width: 922 mm
- Dimensions of the device: 48 x 795 x 517 mm
- Dimensions of the packaged device: 100 x 1030 x 630 mm
- Net weight: 10.1 kg
- Gross weight: 11.8 kg
- Residual heat display: Disconnected
- Location of control: Front
- Surface color: Black
- Length of connection cable: 100.0 cm
- EAN number: 4242004273929
- Voltage: 220-240V
- Frequency: 50; 60 Hz
