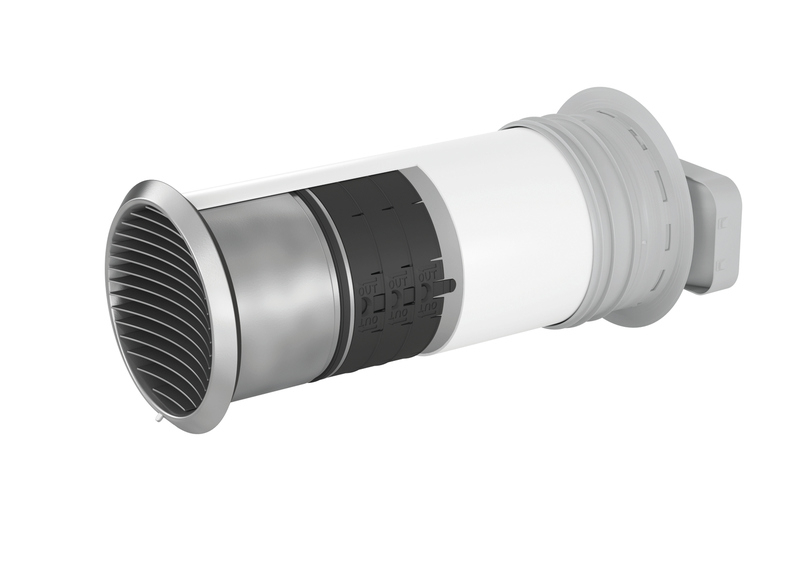

Naber COMPAIR® PRIME flow P-MRBS 150 wall box shell set, light gray, 4051065
The COMPAIR® PRIME flow P-Turbo flow 150 wall box including THERMOBOX is an innovative solution for integrating the extractor hood into an exhaust system. It is part of the COMPAIR PRIME flow® system, which stands for state-of-the-art technology and flexible application options. The exhaust air wall box set includes a mechanical and therefore energy-saving THERMOBOX heat retention system for reliable thermal insulation of the exhaust air opening. The weatherproof stainless steel blind is used outdoors. Thanks to the N-click system of the P-Mas 150 wall connection piece, a secure connection to the inside is created with the universal connectors that are part of the series. It is possible to connect flat adapters, round tubes and round tube bends directly. The complete package includes a shell construction set for the time-independent preparation of the installation during the shell construction phase. The associated pipe is suitable for a wall thickness of up to 550 mm and can be shortened to 220 mm as required. A nominal diameter of 162 mm or 164 mm is required for the core hole drilling. The included hard foam plugs including plastering edge and alignment aid serve to protect against dust and dirt. Thanks to the wall sleeve with three lip seals, the pipe is fixed and tightly shielded from the inner wall.
Version
- Wall box, incl. THERMOBOX heat retention system and Turbo stainless steel external blind for ground-level and conventional installation at ceiling height.
- Two-stage shoring:
1. Assembly of the separately packaged shell kit 2. Tool-free insertion of the heat retention system and the blinds - N-click system for a secure connection with the universal connector
— Direct connection of flat adapter, round tube or round tube elbows — Blower door certified (necessary opening pressure > 65 Pa) - Shell kit:
— Shell construction set for time-independent assembly into the wall — max. wall thickness 550 mm, can be shortened to 220 mm
— Core hole drilling with a nominal diameter of 162 or 164 mm — Hard foam plugs to protect against contamination during the construction phase — Wall sleeve for tool-free installation and sealing against leaks
