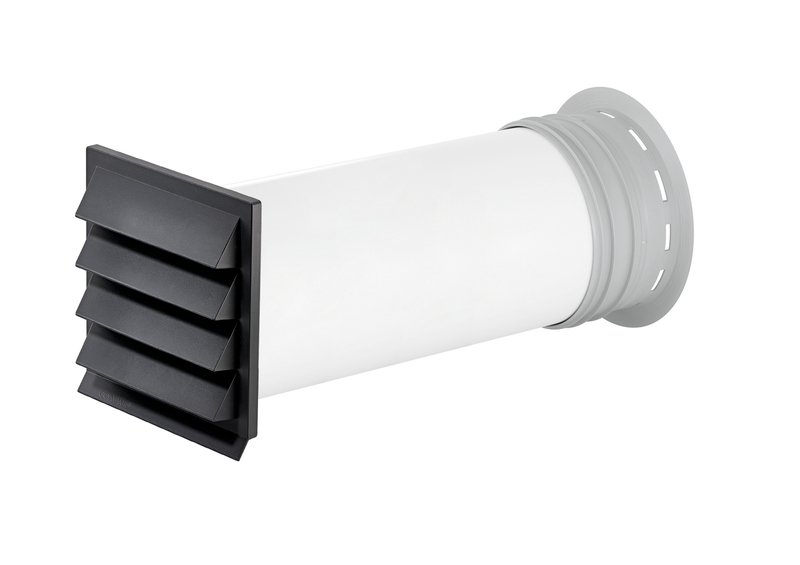

Naber COMPAIR® PRIME flow P-K-Klima-R 150 wall box, anthracite, round, 4051070

Naber COMPAIR® PRIME flow P-K-Klima-R 150 wall box, anthracite, round, 4051070

Naber COMPAIR® PRIME flow P-K-Klima-R 150 wall box, anthracite, round, 4051070

Naber COMPAIR® PRIME flow P-K-Klima-R 150 wall box, anthracite, round, 4051070
Read more
Vendor code: 4051070
Delivery time: 10-12 days
80.90€


Add to cart

For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking chamber and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues so that they can then be wiped off much more easily

Naber COMPAIR® PRIME flow P-K-Klima-R 150 wall box, anthracite, round, 4051070
The Compair® wall box Prime flow P-K-Klima-R ensures a pleasant atmosphere in the kitchen through air drainage. It transports the exhaust air from the extractor system directly outside. The wall duct is part of the Compair® Prime flow program, which is characterized by advanced and energy-efficient kitchen ventilation. Integrated baffles transport the exhaust air quietly and without high pressure loss. For the direct connection of round pipes or round pipe bends, the wall duct offers an adapter with an inner diameter of 151.6 mm. It is suitable for wall thicknesses up to 550 mm, with the option of shortening the telescopic tube to up to 220 mm. The core hole can be 162 or 164 mm. An automatic backflow flap is integrated so that no air can enter the pipe from outside. An external blind, which can be selected in different colors, acts reliably as weather protection. The universal connector with the proven N-click system ensures a secure connection. In addition, the wall sleeve allows for tool-free installation and seals against leaks.

Version

  • Wall box, with backflow flap.
  • N-click system for a secure connection with the universal connector
    — Direct connection of flat adapter, round tube or round elbows — max. wall thickness 550 mm, can be shortened to 220 mm
    — Core hole drilling with a nominal diameter of 162 or 164 mm — Wall sleeve for tool-free assembly and sealing against leaks
  • Connection diameter: 150 mm
  • Outer diameter: 190 mm
  • Inner diameter: 151.6 mm
  • Diameter: 150 mm
  • Properties: can be shortened to 220 mm
  • System dimensions: 150
  • Area of use and application: Outdoor
  • Suitable wall thickness: max. wall thickness 550 mm
