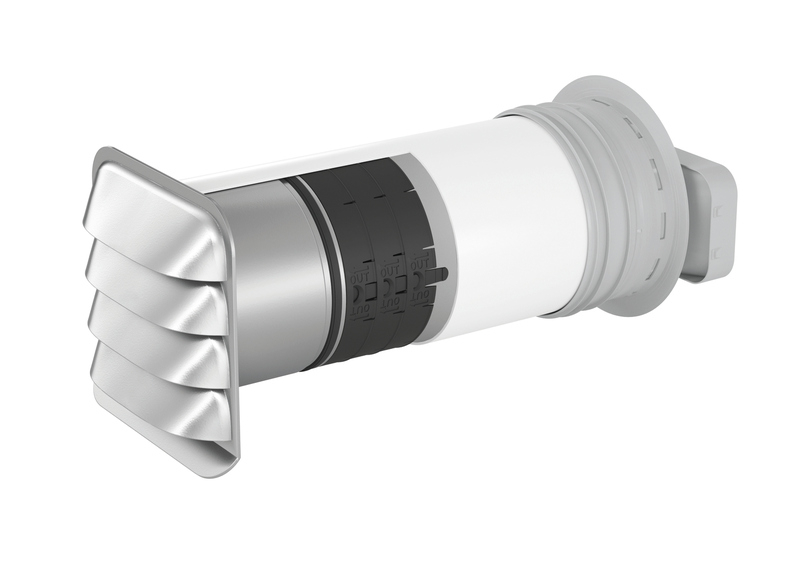

Naber COMPAIR® PRIME flow P-E-Jal Col flow 150 wall box incl. THERMOBOX, white, stainless steel, square, 4051067
The COMPAIR® PRIME flow P-E-Jal Col flow 150 wall box including THERMOBOX and shell construction set is a complete solution for the installation of an efficient Kitchen ventilation. It belongs to the COMPAIR® PRIME flow product family, which enables individual solutions for every need. The innovative components of the exhaust air wall box include a heat retention system. It prevents flow and heat losses from occurring as soon as the extractor hood is switched off. The weather-resistant P-E-Jal Col blind made of stainless steel forms a decorative finish to the outdoor area. It is suitable for installation near the floor as well as at common ceiling heights. To enable easy connection with the P-UVB 150 universal connector, which is optionally available as an accessory, the P-MAS 150 wall connection piece with a practical N-click system is included in the overall package. Depending on the version, flat adapters, round tubes or round tube bends are connected directly. The shell construction set is designed for a maximum wall thickness of 550 mm. The telescopic tube can be shortened to 220 mm. Styrofoam plugs that can be used on both sides protect against contamination during the construction phase and also serve as an alignment aid. The wall connection sleeve with 3-lip seal is installed without tools and without silicone and reliably seals the pipe. The final assembly of the exhaust air wall box takes place in the second phase
Version
- Wall box, incl. THERMOBOX heat retention system and stainless steel external blind P-E-Jal Col for installation close to the floor and for conventional installation at ceiling height.
- Two-stage shoring:
1. Assembly of the separately packaged shell kit 2. Tool-free insertion of the heat retention system and the blinds - N-click system for a secure connection with the universal connector
— Direct connection of flat adapter, round tube or round tube elbows — Blower door certified (necessary opening pressure > 65 Pa) - Shell kit:
— Shell construction set for time-independent assembly into the wall — max. wall thickness 550 mm, can be shortened to 220 mm
— Core hole drilling with a nominal diameter of 162 mm — Styrofoam plugs to protect against contamination during the construction phase — Wall sleeve for tool-free assembly and sealing against leaks - Connection diameter: 150 mm
- Properties: can be shortened
- Suitable wall thickness: max. wall thickness 550 mm
- suitable for: direct connection of flat adapter, round tube or round tube elbows
- Opening pressure: > 65 Pa
- Connection shape: square
