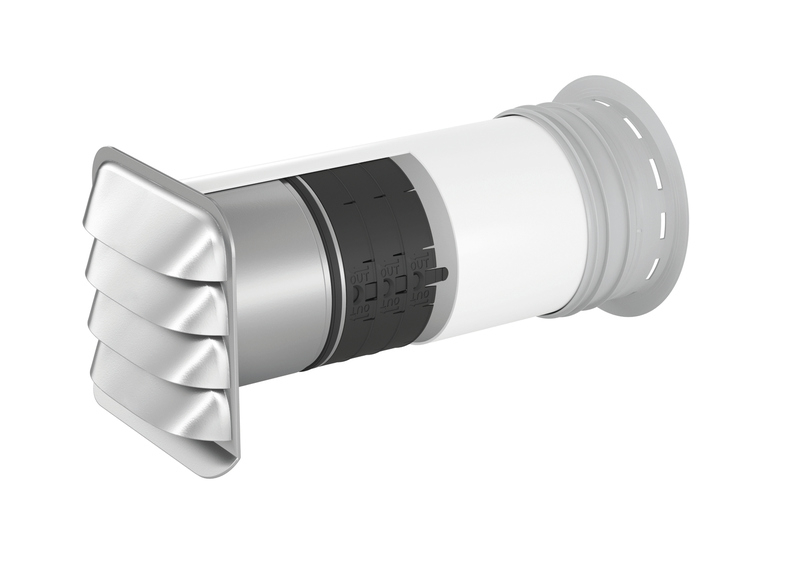

Naber COMPAIR® PRIME flow P-E-Jal Col 150 wall box incl. THERMOBOX, white, stainless steel, 4051066
Suitable for optimized kitchen ventilation without heat loss: The COMPAIR® PRIME flow P-E-Jal Col 150 wall box including THERMOBOX. It is tailored to all air ducts and components of the COMPAIR® PRIME flow family. The basic equipment includes the proven Thermobox as a heat retention system. It works mechanically and therefore saves energy. The external finish is the P-E-Jal Col blind made of stainless steel for installation near the floor or ceiling height. A secure connection with the universal connector inside is created by the easy-to-use N-click system of the optionally available. Wall connection socket P-Mas 150. There are direct connection options to flat adapters, round pipes and round pipe bends. Installation in the wall duct is carried out in two independent phases using the shell construction set that is part of the overall package. The associated pipe is designed for a maximum wall thickness of 550 mm and can easily be shortened to 220 mm. A nominal diameter of 162 mm is required for the core hole drilling. The Styrofoam plugs included in the shell construction set protect against unwanted contamination during the construction phase and also serve as an alignment aid. Tool-free assembly and sealing is made possible by the wall sleeve with three lip seals.
Version
- Wall box, incl. THERMOBOX heat retention system and stainless steel external blind P-E-Jal Col for installation close to the floor and for conventional installation at ceiling height.
- Two-stage shoring:
1. Assembly of the separately packaged shell kit 2. Tool-free insertion of the heat retention system and the blinds - N-click system for a secure connection with the universal connector
— Direct connection of flat adapter, round tube or round tube elbows — Blower door certified (necessary opening pressure > 65 Pa) - Shell kit:
— Shell construction set for time-independent assembly into the wall — max. wall thickness 550 mm, can be shortened to 220 mm
— Core hole drilling with a nominal diameter of 162 mm — Styrofoam plugs to protect against contamination during the construction phase — Wall sleeve for tool-free assembly and sealing against leaks - Connection diameter: 150 mm
- Properties: can be shortened
- Suitable wall thickness: max. wall thickness 550 mm
- suitable for: direct connection of flat adapter, round tube or round tube elbows
- Opening pressure: > 65 Pa
- Connection shape: round
