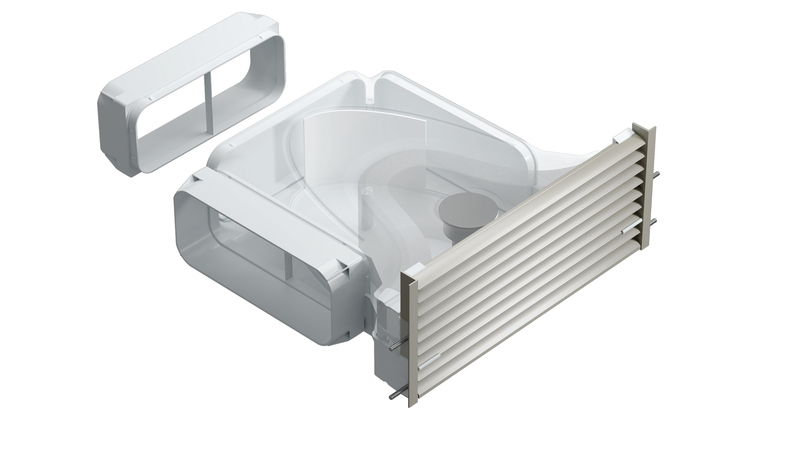

Naber COMPAIR® PRIME flow GREENflow filter box set-2 with filter, for draining downdraft hoods especially on kitchen islands, 4043095
The modular COMPAIR® GREENflow filter box set-2 achieves an even distribution of the air flow for downdraft hoods in the kitchen. The system safely directs cooking fumes from the body into the room, thereby preventing moisture damage or contamination of the underside of the cabinet. In addition, the filter system uses the aerodynamically optimized ventilation grille made of anodized aluminum to reduce the overall pressure loss and the noise generated by the extractor hood with minimal air movement. It can be flexibly arranged in the base area of the fitted kitchen and is compatible with almost any downdraft fan with or without an activated carbon filter. For optimal ventilation results, additional boxes can be added at any time. Furthermore, the patented COMPAIR® GREENflow system is characterized by easy access and therefore problem-free maintenance. The integrated base foot can be used optionally and offers a load capacity of up to 300 kg. The four-part table fan set consists of the filter box, a 1 m long flex duct, a 15 m long cold shrink tape for easy installation and an activated carbon filter in OMEGA design.
Version
- Circulating air filter system for filtering the cooking vapor when using a downdraft hood/trough fan.
- high flexibility in the arrangement of the filter boxes
- suitable for base heights of 100–150 mm (grid can be shortened)
- Guide elements ensure an even distribution of the air flow
- suitable for almost all common downdraft hoods/trough fans, with or without their own activated carbon filter
- easy maintenance/access
- integrated base (can be used as an option, load capacity > 300 kg)
- aerodynamically optimized slats of the ventilation grille (anodized aluminum) minimize pressure loss and ensure barely noticeable air movement
- maximum outlet cross section ensures barely noticeable air movement
- W x H x L: 362 x 100-150 x 353 mm
Set consisting of:
- 1 x filter box (4043075/4043097)
- 1 x GREENflow flex channel, 1 m (4043093)
- 1 x GREENflow cold shrink tape, 15 m (4043077)
- 1 x GREENflow OMEGA filter (4043080)
- For optimal ventilation results, additional boxes can easily be added
