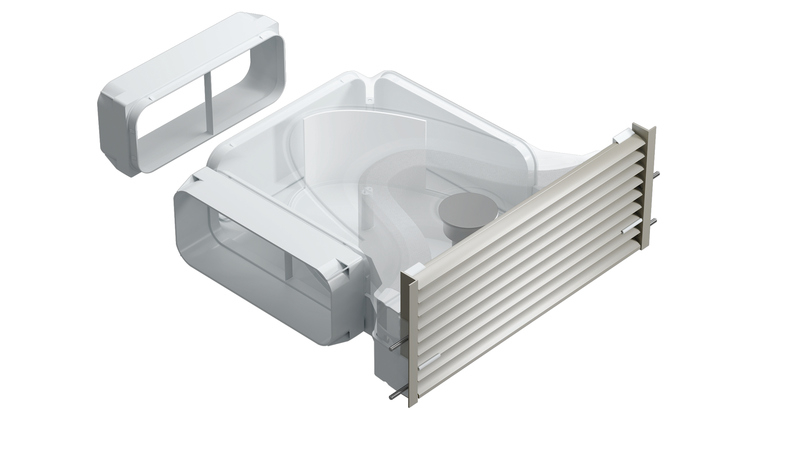

Naber COMPAIR® PRIME flow GREENflow filter box set-1, for removing cooking fumes, especially from kitchen islands, 4043094
With the COMPAIR PRIME flow® GREENflow filter box set-1, cooking fumes can be safely removed, especially from kitchen islands. The circulating air filter system is specially developed for the use of a downdraft hood or a downdraft fan. It is part of the modular COMPAIR GREENflow ventilation technology and is characterized by a high suction performance due to the large filter surface. The set consists of the GREENflow filter box, which is mounted in the base area of the kitchen block. It fits base heights from 100 to 150 mm. The box is combined with a one meter long flex duct in a flat, angular design. The outside diameter is 150 mm. The associated cold shrink tape ensures a tight connection of the components. Thanks to the integrated base with a load capacity of up to 300 kg, furniture feet can be replaced if necessary. A ventilation grille with aerodynamically optimized slats minimizes pressure loss and ensures barely perceptible air movement. It is made of anodized aluminum and comes in a neutral gray color. For efficient ventilation results, the filter box can be combined with an OMEGA activated carbon filter and other boxes, which are available separately.
Version
- Circulating air filter system for filtering the cooking vapor when using a downdraft hood/trough fan.
- high flexibility in the arrangement of the filter boxes
- suitable for base heights of 100–150 mm (grid can be shortened)
- Guide elements ensure an even distribution of the air flow
- suitable for almost all common downdraft hoods/trough fans, with or without their own activated carbon filter
- easy maintenance/access
- aerodynamically optimized slats of the ventilation grille (anodized aluminum) minimize pressure loss and ensure barely perceptible air movement
- maximum outlet cross section ensures barely noticeable air movement
- W x H x L: 362 x 100-150 x 353 mm
Set consisting of:
- 1 x filter box (4043075/4043097)
- 1 x GREENflow flex channel, 1 m (4043093)
- 1 x GREENflow cold shrink tape, 15 m (4043077)
- The GREENflow OMEGA filter must be ordered separately if required. For a good ventilation result, the use of at least two boxes is recommended.
