. The hood body construction is vacuumed and directed to the grease filter behind it. Due to the high flow speed at the edge of the extractor hood, almost no cooking fumes can escape into the kitchen, even with lower motor settings. There are no turbulences, the drag effect is high and rebound effects play no role. The air does not flow into the kitchen, but directly into the extractor hood. The increase in efficiency resulting from the edge extraction enables operation at lower power levels, with less energy consumption and lower noise.

with high flow speed

Follow-up time can be switched on in all fan levels

Recirculation air possible with recirculation air set, device then at least 73 cm high

Connection to smaller exhaust air systems not possible

Metal grease filter concealed, dishwasher safe

Combination with optional plug-in window switch possible (item no. 34.118)

Pipe extension for exhaust air possible up to a room height of approx. 315 cm

Grease filter saturation indicator

ATTENTION: This extractor hood is not equipped with a motor, this must be ordered separately! You will find a selection of corresponding motors under “Special accessories”.

Features:

• Lighting 4 x 2 W LED (dimmable) warm white 2,700K (optional: kit LED neutral white 4,000K)
• Electronic circuit 4 levels
• Exhaust air nozzle: 150 mm round

• Concealed metal grease filter, dishwasher safe

Technical information

• Type: Wall hood
• Recirculation: optional

• Sound insulation: integrated

• Dimensions (WxD): 89.9 x 55.4 cm

• Width: 90cm

• Shaft extension height max.: 141 cm
• Free-blowing performance: see motor

• Performance : see engine

• Noise: see engine

• Speed ​​levels: 3 + Intensive

• Circuit: Electronic circuit

• Circuit: buttons / remote control

• Number of metal grease filters: 1 piece, dishwasher safe

• Max. connection value with external motor: 12+motor watts

• Lighting: 4 x 2 watts

• Weight of extractor hood / external motor (kg) 30

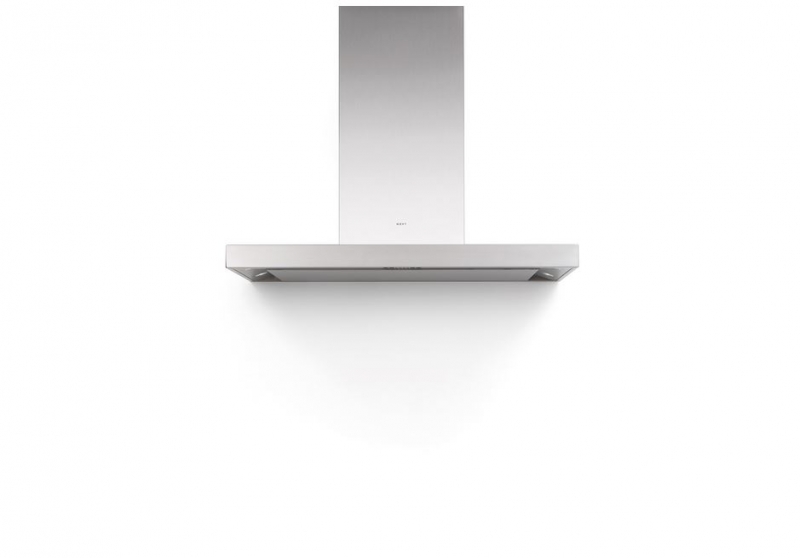

  . The manufacturer offers a 5-year guarantee throughout Germany on the delivered item Novy Flat'line wall hood 7605, stainless steel wall hood. If material or manufacturing defects occur during this period, the manufacturer will provide one of the following services at its discretion under the guarantee:
