For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking space and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

• 4-stage fan performance: Always fresh Air thanks to the powerful motor with 4 fan levels.

• Noise 60 dB: As quiet as a conversation with a fan output of level 3 (60 dB).

• Slanted design: Modern, black glass design for excellent headroom and overview when cooking.

• LED lighting: Economical and long-lasting - the entire hob in view (with light efficiency class A).

• Easy cleaning: Large opening angle for easy cleaning and simple filter replacement.


Design

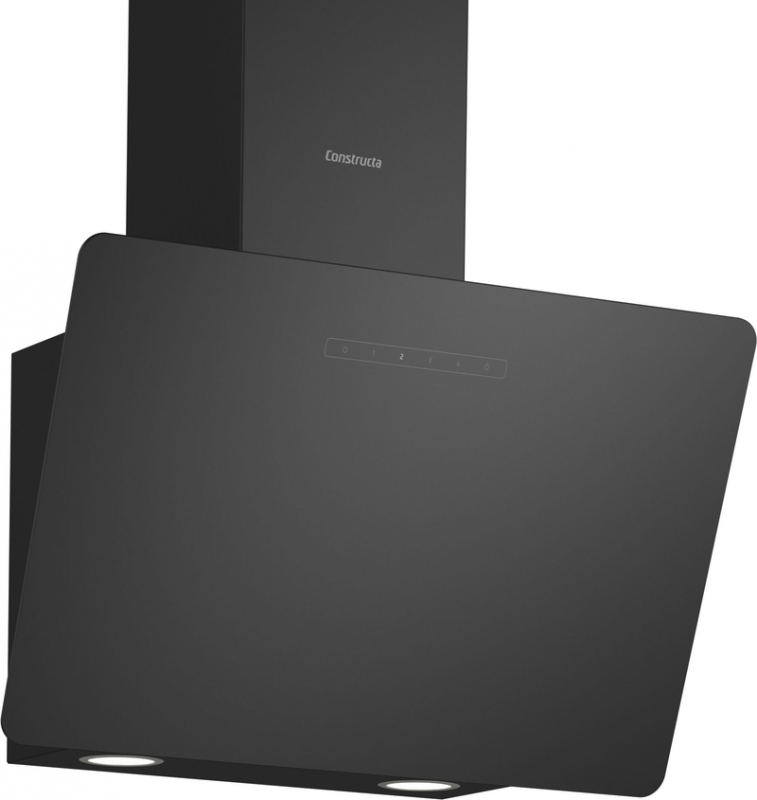

• Slanted Essen Design

• Wall mounting

• Glass pane: black printed

• For exhaust air or recirculation mode

• A standard recirculation set (special accessory) is required for recirculation mode

Most important features

• Capacitor motor
• Workplace lighting with 2 x 3 W LED modules
• Color temperature: 4000 K
• Illuminance: 127 lux
• 1 metal grease filter

Comfort functions

• Electronic control via touch control, backlit

• 3 performance levels and 1 intensive level

• Automatic reset from intensive to normal level after 5 minutes

• Saturation indicator for grease and odor filters

Cleaning

• Large opening angle of the glass plate with locking function for easy filter accessibility and easy cleaning.

• The surfaces and materials are smooth and easy to clean.

• Long-lasting metal grease filter, dishwasher-safe

Performance

• Exhaust air performance: According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values ​​in exhaust air mode:

• Performance level 1: Fan performance: 220 m3/h; Noise value 46 dB(A) re1pW

• Performance level 2: Fan performance: 315 m3/h; Noise value 53 dB (A) re1pW

• Performance level 3: Fan performance: 430 m3/h; Noise value 60 dB (A) re1pW

• Intensive level 1: Fan performance: 550 m3/h; Noise value 65 dB (A) re1pW

• Energy efficiency class: A (on an energy efficiency class scale from A+++ to D)

• Average energy consumption: 43.8 kWh/year

• Fan efficiency class: A

• Lighting efficiency class: A

• Grease filter efficiency class: E

• Recirculation air performance: According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values ​​in recirculation mode with the standard recirculation set (available as an optional accessory):

• Performance level 1: Fan performance 215 m3/h; Noise value 51 dB(A) re1pW

• Performance level 2: Fan performance 300 m3/h; Noise value 61 dB(A) re1pW

• Performance level 3: Fan performance 445 m3/h ; Noise value 69 dB(A) re1pW

• Intensive level 1: fan performance 550 m3/h; Noise value 72 dB (A) re1pW

Technical information

• Total connected load: 223 W

• Voltage: 220 - 240 V

• Device dimensions exhaust air (HxWxD): 690-900 x 590 x 325 mm

• Device dimensions for circulating air (HxWxD): 720-975 x 590 x 325 mm

• Exhaust air connection Ø 150 mm

• Length of connection cable: 1.5 m with plug

• Delivery with backflow flap

Technical data:

• Type: wall mounting

• Length of connection cable: 150.0 cm

• Device height: 375 mm

• Minimum distance to the electric hob: 450 mm

• Minimum distance to the gas hob: 650 mm

• Net weight: 11.0 kg

• Control: electronic

• Max. fan power exhaust mode: 430 m³/h

• Fan performance in intensive level recirculation mode: 550.0 m³/h

• Max. fan power recirculation mode: 445 m³/h

• Fan performance in intensive exhaust mode: 550 m³/h

• Number of lamps (pcs): 2

• Noise level: 60 dB(A) re 1 pW

• Diameter of the exhaust air connection: 150 mm
• Grease filter material: washable aluminum
• EAN number: 4242004272847

• Connection value: 223 W

• Fuse: 4 A

• Voltage: 220-240V

• Frequency: 50 Hz

• Plug type: Schuko/Gardy with earthing
• Type of installation: Wall mounting
