For light soiling. Place approx. 400 ml of water and a little washing-up liquid in the cooking space and select the cleaning program. The environmentally friendly cleaning system softens burnt-in residues, making them much easier to wipe off afterwards

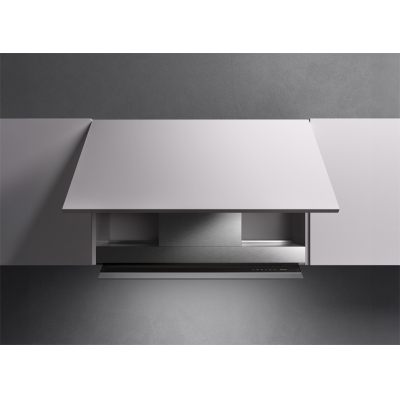

Constructa CD616650, Wandesse hipped roof, stainless steel, 60 cm
INCLUDING 5 YEAR WARRANTY * (for Germany, Denmark, Czech Republic, Poland, Austria, France, Luxembourg, Belgium, Netherlands and Switzerland)
Equipment / comfort
- 60 cm wall dining
- For wall mounting
- For exhaust air or recirculation air operation
- A starter set is required for recirculation mode
- Fan power adjustable in 3 levels using push buttons
- Double-flow high-performance fan
- Even, bright lighting with 2 x 1.5W LED module
- Illuminance: 104 lux
- Color temperature: 3500 K
- Durable metal grease filter, dishwasher safe
Technical data:
Energy efficiency class: C (on an energy efficiency class scale from A++ to E)
Average energy consumption: 51.4 kWh/year*
Fan efficiency class: E*
Lighting efficiency class: A*
Grease filter efficiency class: C*
Noise min./max. Normal level: 50/66 dB
Voltage: 220 - 240 V
Total connected load: 100 W
Max. delivery rate: 360 m3/h
Exhaust air performance according to EN 61591
max. 360 m³/h
Recirculating air performance:
max. normal operation: 200 m³/h
Noise values according to EN 60704-3 and EN 60704-2-13 max. normal level exhaust air mode: 66 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
Noise value in recirculation mode:
Max. normal level: 67 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)
Device dimensions, exhaust air (HxWxD): 799-975 x 600 x 500 mm Device dimensions for circulating air (HxWxD): 799-975 x 600 x 500 mm Length of connection cable: 1.3 m with plug Exhaust air socket Ø 150 mm (Ø 120 mm included)
Average energy consumption: 51.4 kWh/year*
Fan efficiency class: E*
Lighting efficiency class: A*
Grease filter efficiency class: C*
Noise min./max. Normal level: 50/66 dB
Voltage: 220 - 240 V
Total connected load: 100 W
Max. delivery rate: 360 m3/h
Exhaust air performance according to EN 61591
max. 360 m³/h
Recirculating air performance:
max. normal operation: 200 m³/h
Noise values according to EN 60704-3 and EN 60704-2-13 max. normal level exhaust air mode: 66 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
Noise value in recirculation mode:
Max. normal level: 67 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)
Device dimensions, exhaust air (HxWxD): 799-975 x 600 x 500 mm Device dimensions for circulating air (HxWxD): 799-975 x 600 x 500 mm Length of connection cable: 1.3 m with plug Exhaust air socket Ø 150 mm (Ø 120 mm included)
*Note:
If a guarantee is stated in the item description, your statutory warranty rights towards us remain unaffected. If the purchased item is defective, you can contact us in any case, regardless of whether the warranty case occurs and whether the warranty is claimed or not.
In the countries of Denmark, Czech Republic, Poland, Austria, France, Luxembourg, Belgium, the Netherlands and Switzerland, in the event of damage or repairs, the maximum costs covered under the 5-year guarantee are the amount of the damage or the repair costs would have been incurred , if they had taken place in Germany.
In the countries of Denmark, Czech Republic, Poland, Austria, France, Luxembourg, Belgium, the Netherlands and Switzerland, in the event of damage or repairs, the maximum costs covered under the 5-year guarantee are the amount of the damage or the repair costs would have been incurred , if they had taken place in Germany.
