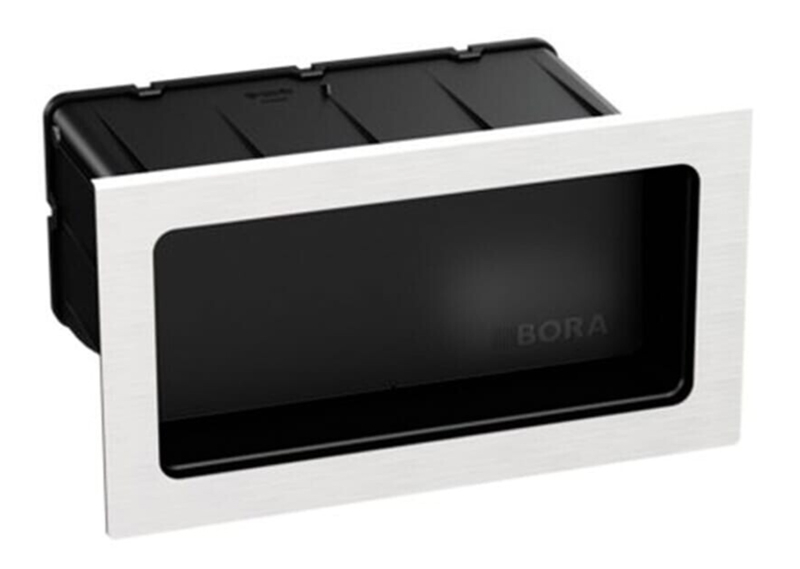

BORA Ecotube 3box wall box, UEBF/1
Product description
- optimal extraction performance with lowest noise
- Purely mechanical functionality
- Two flaps with EPS insulation
- outstanding insulation value
- integrated water drainage to the outside
- Low pressure resistance during operation
- optimized opening pressure
- UV-resistant materials
- 100% tight without additional gluing
- including the necessary Ecotube seals
Scope of delivery
- 1 x BORA 3box UEBF
- 6 x mounting wedges made of EPS
- Assembly instructions
- 1 x flat seal EFD
- 1 x Ecotube flat duct with web 375mm EFS375
Technical data and planning information
- Dimensions (WxDxH) wall box 290 x 210 x 140 mm
- Dimensions (WxDxH) panel 363 x 7.5 x 209 mm
- Weight (including accessories/packaging) approx. 2.8 kg
- Material plastic / stainless steel
- Duct connection BORA Ecotube
- U-value according to EN ISO 12567-1 1.1 W/(m²K)
- Wall breakthrough: 310 x 155 mm
- Ecotube sewer connection with a flat socket design
- Suitable for a minimum wall thickness of 200 mm
- The wall box must not be rotated through 180°, installed upright or with the outlet opening pointing downwards
- The UEBFES intervention protection must be used if the distance between the fan blow-out opening and the wall box blow-out opening in a straight exhaust air duct is less than 900 mm
- A straight blowout must be possible regardless of the weather
