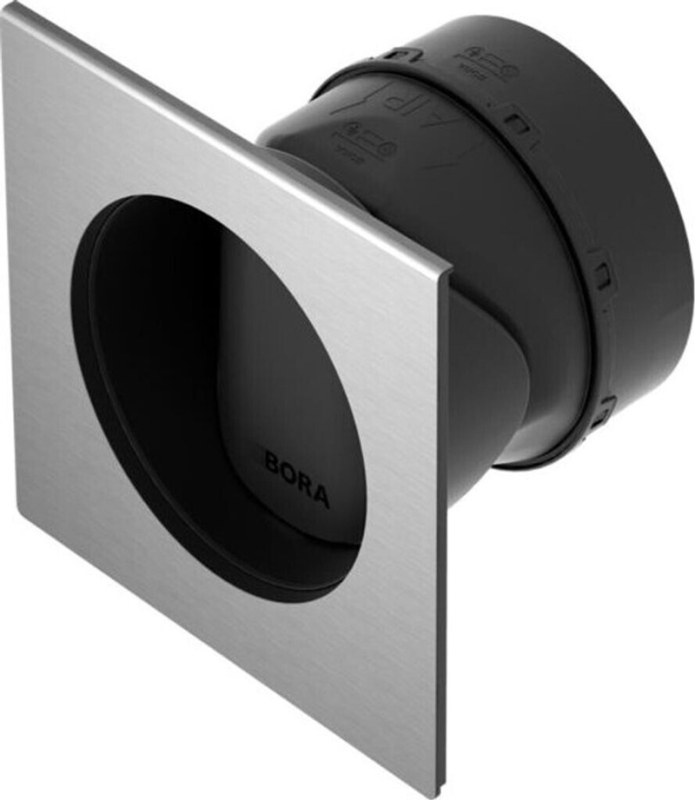

BORA 3box round wall box short incl. sealing material, UEBRK/1
Product description
- Installation in walls with thin walls
- Purely mechanical functionality
- A flap with EPS insulation
- optimized opening pressure
- less assembly effort
- shortenable sleeve design
- Cleaning cover
- integrated water drainage to the outside
- Low pressure resistance during operation
- UV-resistant materials
Scope of delivery
- 1 x BORA 3box UEBRK
- Cleaning cover
- Assembly instructions
- 1 x seal round ERD
Technical data and planning information
- Dimensions (WxDxH) wall box Ø 170 x 145 - 165 mm
- Dimensions (WxDxH) panel 234 x 8 x 234 mm
- Weight (including accessories/packaging) approx. 1.5 kg
- Material plastic / stainless steel
- Duct connection BORA Ecotube
- U-value according to EN ISO 12567-1 3.2 W/(m²K)
- Core drilling diameter Ø180 mm
- Ecotube sewer connection with a round socket design
- Sleeve length 45 mm (can be shortened by 20 mm)
- Suitable for a minimum wall thickness of 145 mm
- The wall box must not be rotated through 180°, installed upright or with the outlet opening pointing downwards
- The UEBRES intervention protection must be used if the distance between the fan outlet opening and the wall box outlet opening in a straight exhaust air duct is less than 900 mm
- A straight blowout must be possible regardless of the weather
